Replacing the K1/K2 or M1/M2 motherboard

BEETLE /M-III - Service manual 75

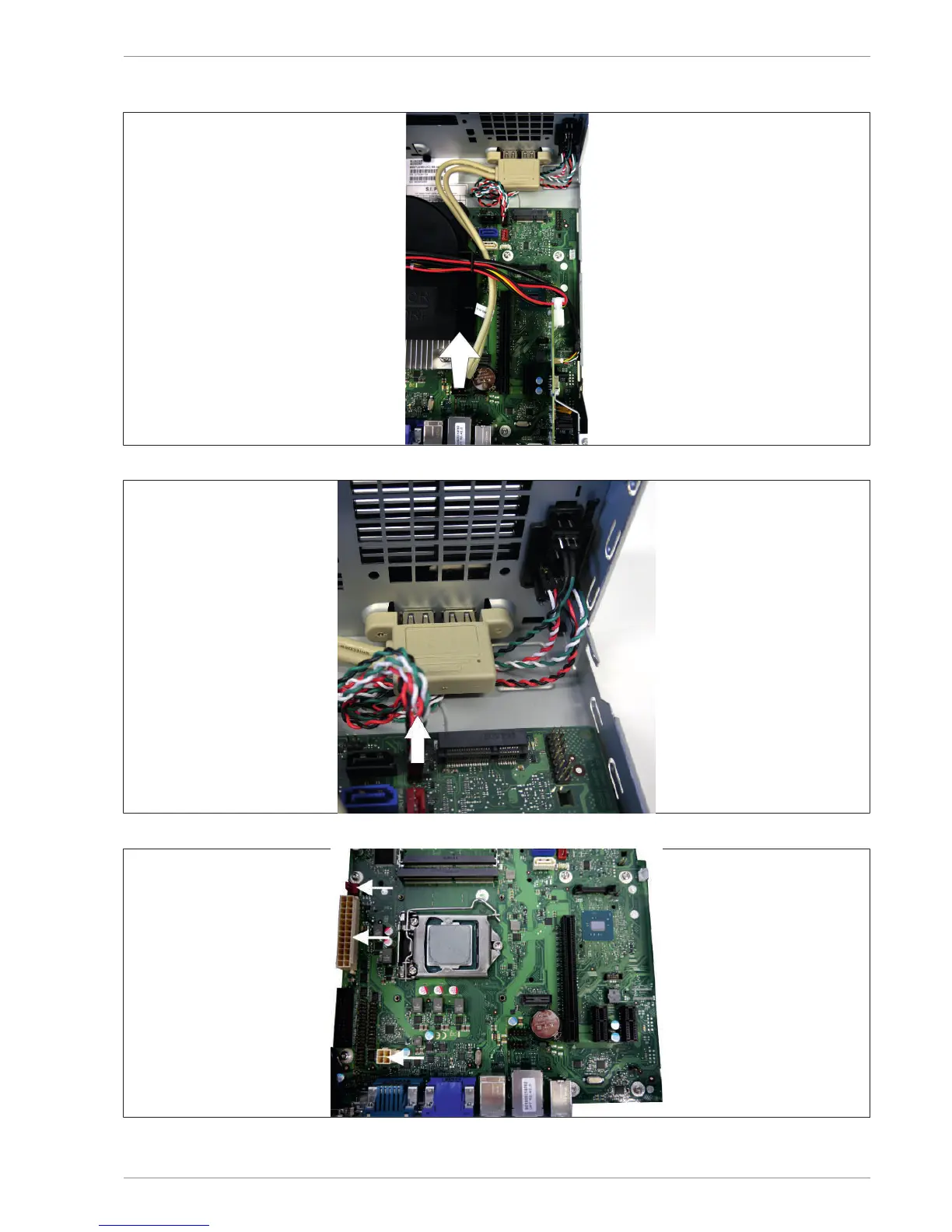

Disengage the cable of the front USB port on the motherboard.

Disengage the plug of the combination module on the motherboard.

Disengage three power cables (see arrows) on the motherboard.
