Replacing the O1 motherboard
BEETLE /M-III - Service manual 83

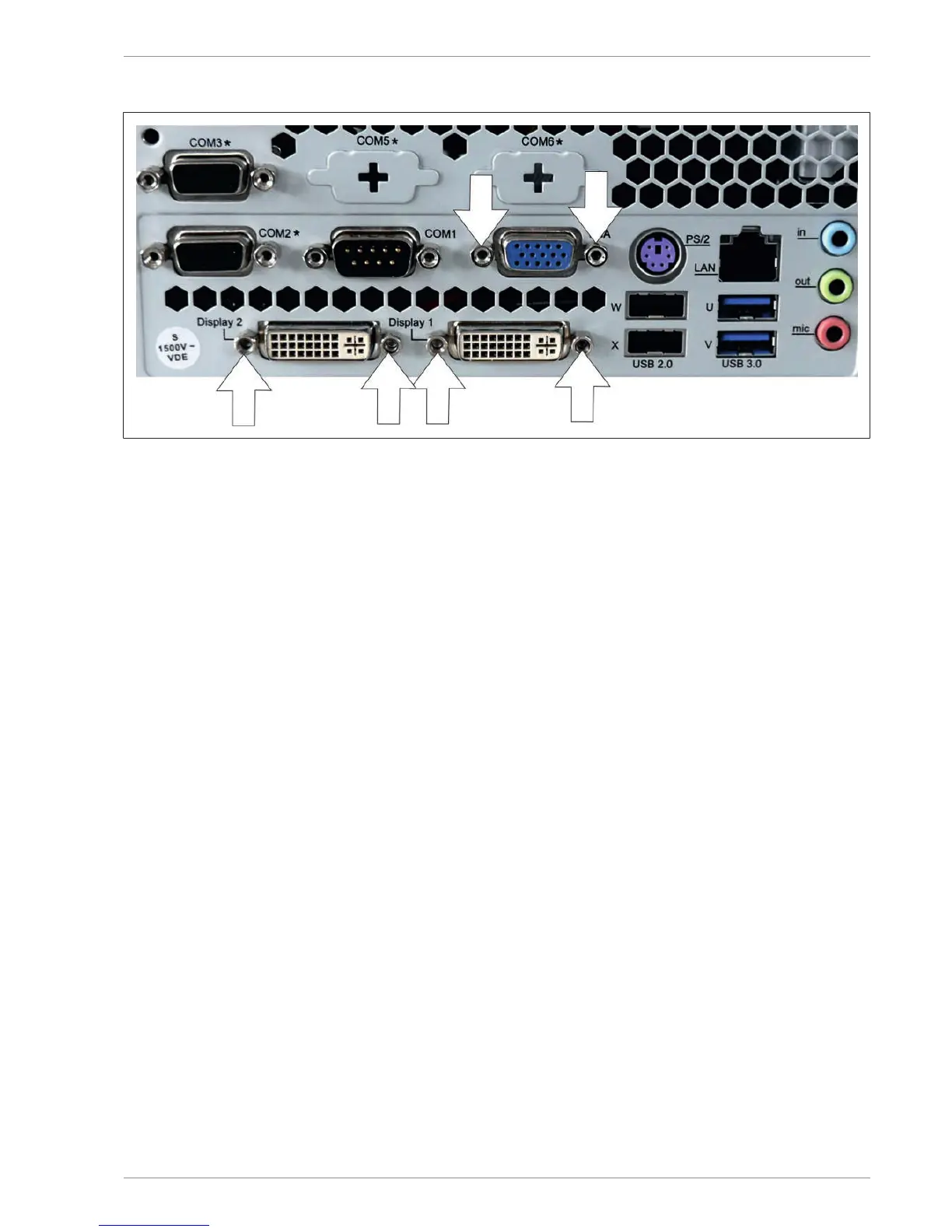

Remove the six screws on the rear side of the BEETLE/M-III.
Lift the motherboard to the front side of the device and lift it out of the housing.
Remove the RAM strips from the old motherboard and insert them on the new motherboard (see chapter
"Memory expansion").
Set the new motherboard in the housing and follow the previous steps in reverse order.
