Digi IX10 hardware reference IX10 LEDs
IX10 User Guide
27
Item Decription
1. LEDs
See
IX10 LEDs
.
2.
Antenna
connectors
Main (WWAN1) and auxillary (WWAN2) cellular antenna connectors.
3.
ERASE
button
The ERASE button is used to perform a device reset, and it has three modes:
1. Configuration reset: Pressing the ERASE button one time will reset the
device configurations to the factory default. It will not remove any
automatically generated certificates and keys.
2. Full device reset: After the device reboots from the first button press, press
the ERASE button again before the device is connected to the internet to also
remove generated certificates/keys.
3. Firmware reversion: Press and hold the ERASE button and then power on
the device to boot to the version of firmware that was used prior to the
current version.
4.
Ethernet
port
LAN-enabled by default.
5. Serial
port
See Digi IX10 serial connector pinout for information about the serial port pin-out.
6. Power
suppy
IX10 power supply requirements.

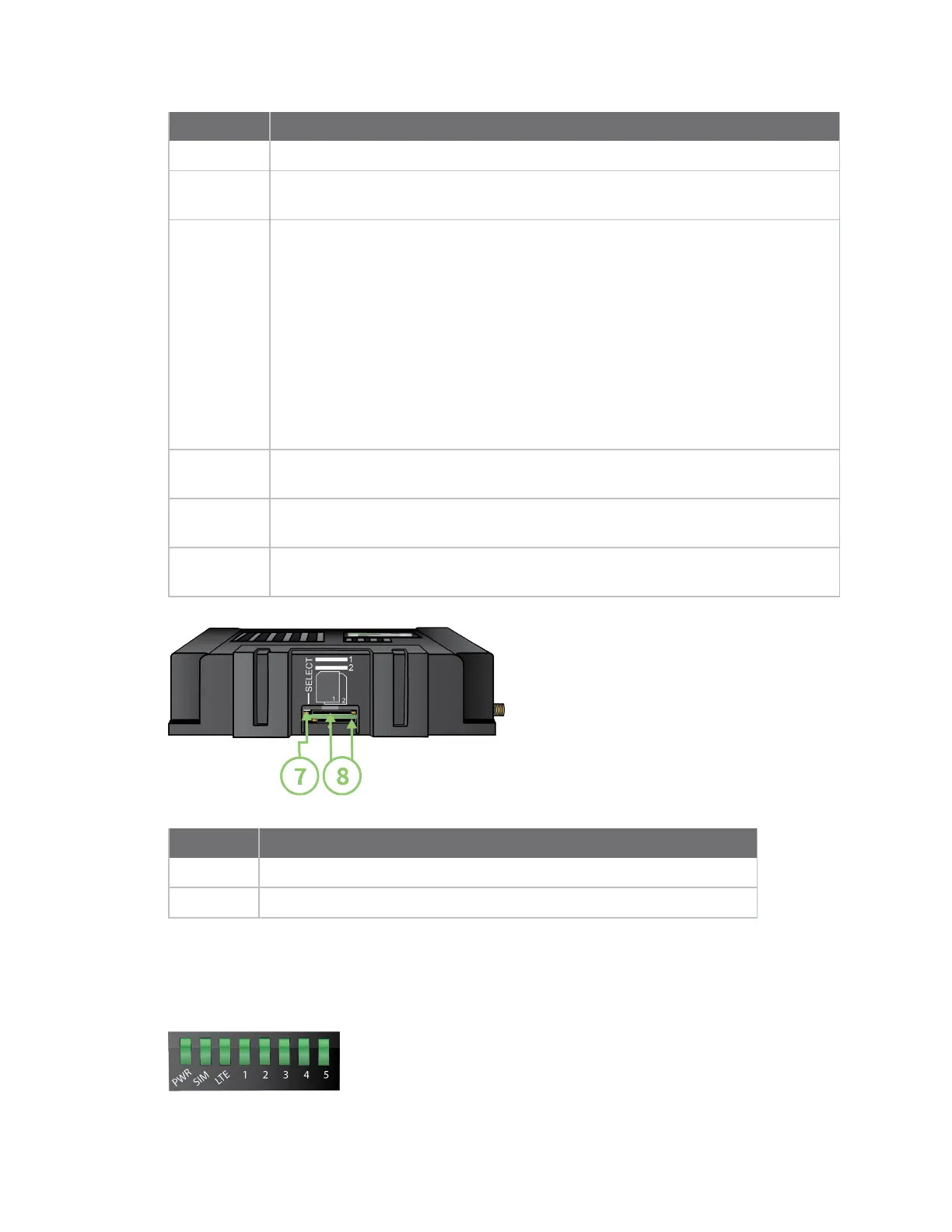

Item Decription
7.
SELECT The SELECTbutton is used to manually toggle between the two SIM slots.
8. SIMslots See Install SIM cards for more details.
IX10 LEDs
The IX10 LEDs are located on the top front panel. . During bootup, the front-panel LEDs light up in
sequence to indicate boot progress.
