Hardware setup Connect data cables
IX10 User Guide
36

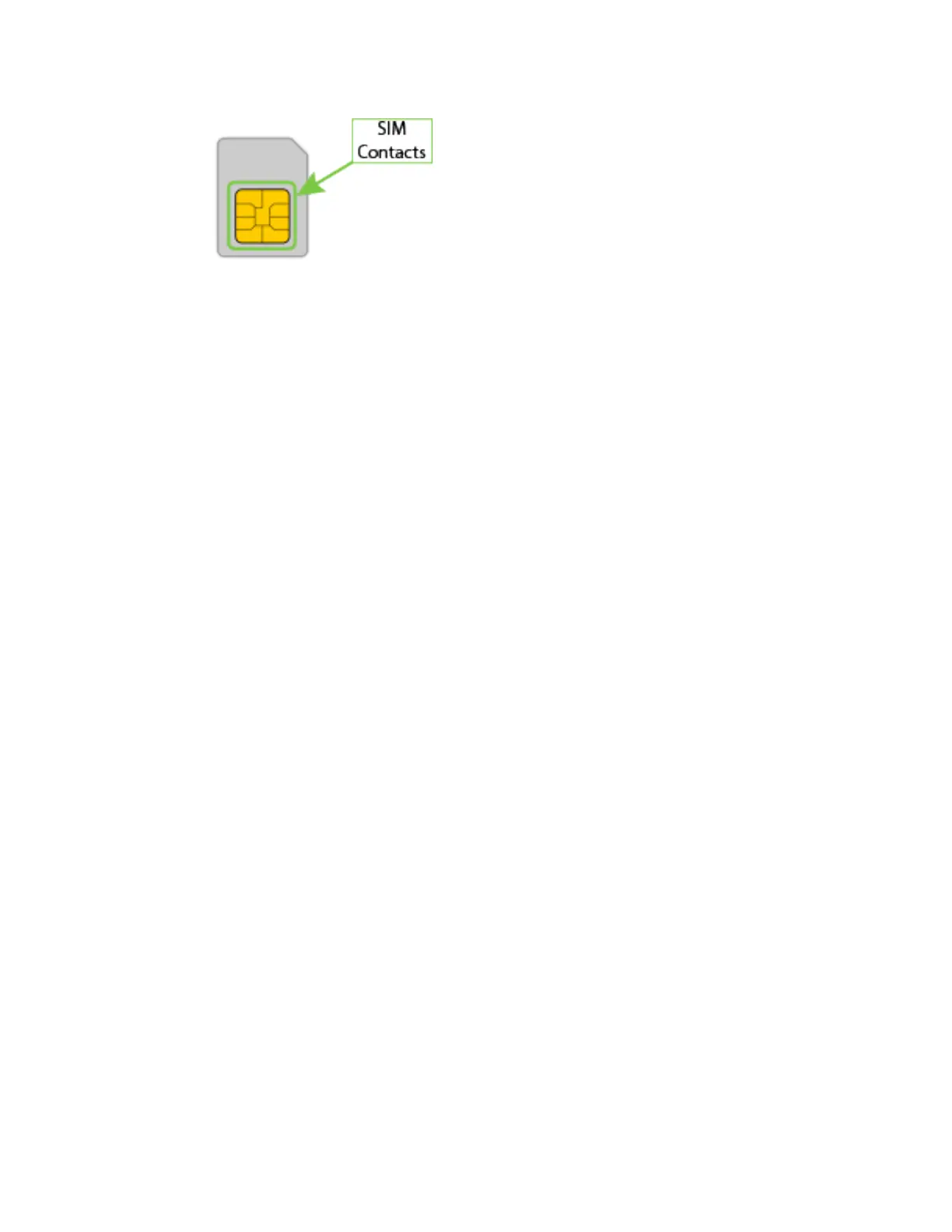

3. Once the surface is clean and dry, apply a small amount of dielectric grease in a thin layer over
the contacts. Use a new cotton-tipped applicator to work the grease smoothy over the
contacts. Apply gentle pressure.
4. When the dielectric grease has been applied, insert the SIM into the SIM slot as described
above.
SIM removal
The IX10 has a PUSH-PUSH SIM connector. To insert, push each SIM in until it clicks, and repeat for
removal. When you push to eject, the SIM ejects back out about 1/8 inch.
Tips for improving cellular signal strength
If the signal strength LEDs or the signal quality for your device indicate Poor or No service, try the
following things to improve signal strength:
n
Move the device to another location.
n
Try connecting a different set of antennas, if available.
n
Purchase a Digi Antenna Extender Kit: Antenna Extender Kit, 1m.
Connect data cables
The IX10 provides two types of data ports:
n
Ethernet (RJ-45): Use a Cat 5e or Cat 6 Ethernet cable.
n
Serial (RJ-50): Use a serial cable with an RJ-50 connector to connect to the IX10 device. See 10-
pin serial cabling options for information about Digi's 10-pin RJ-50 cables.
Mount the IX10 device
There are two options for mounting the IX10 device:
n
Attach to a mounting surface by using the mounting tabs.
n
Attach to DIN rail with clip.
