System
administration
Disable
device
encryption
IX10
User
Guide
845
a.

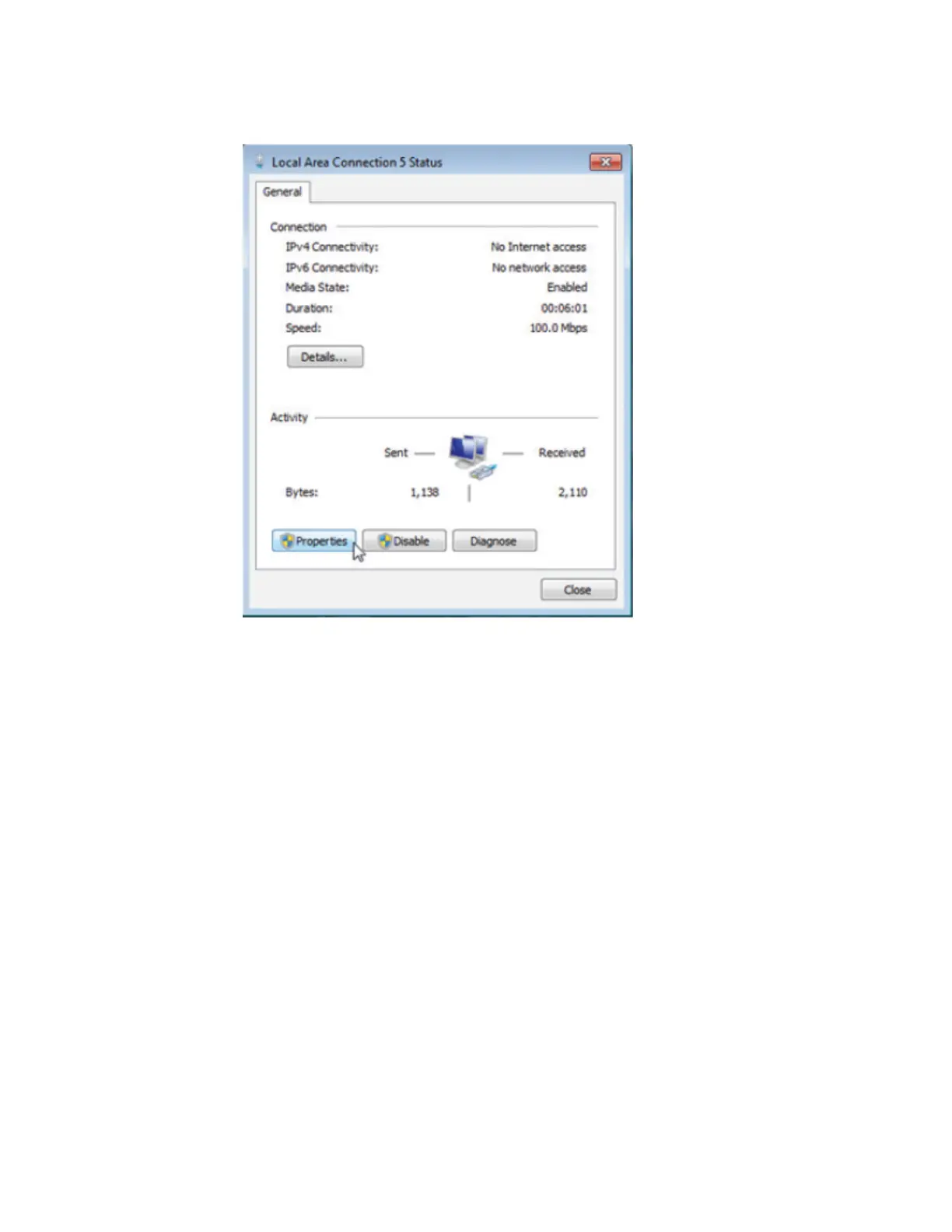

Select
the
Properties
of
the
relevant
network
connection
on
the
Windows
PC.
b.
Click
the
Internet
Protocol
Version
4
(TCP/IPv4)
parameter.
c.
Click
Properties
.
The
Internet
Protocol
Ve
rsion
4
(TCP/IPv4)
Properties
dialog
appears.
d.
Configure
with
the
following
details:
n
IP
address
for
PC:
192.168.210.2
n
Subnet
:
255.255.255.0
n
Gateway
:
192.168.210.1
844
846
