10 REFERENCE & INSTALLATION MANUAL

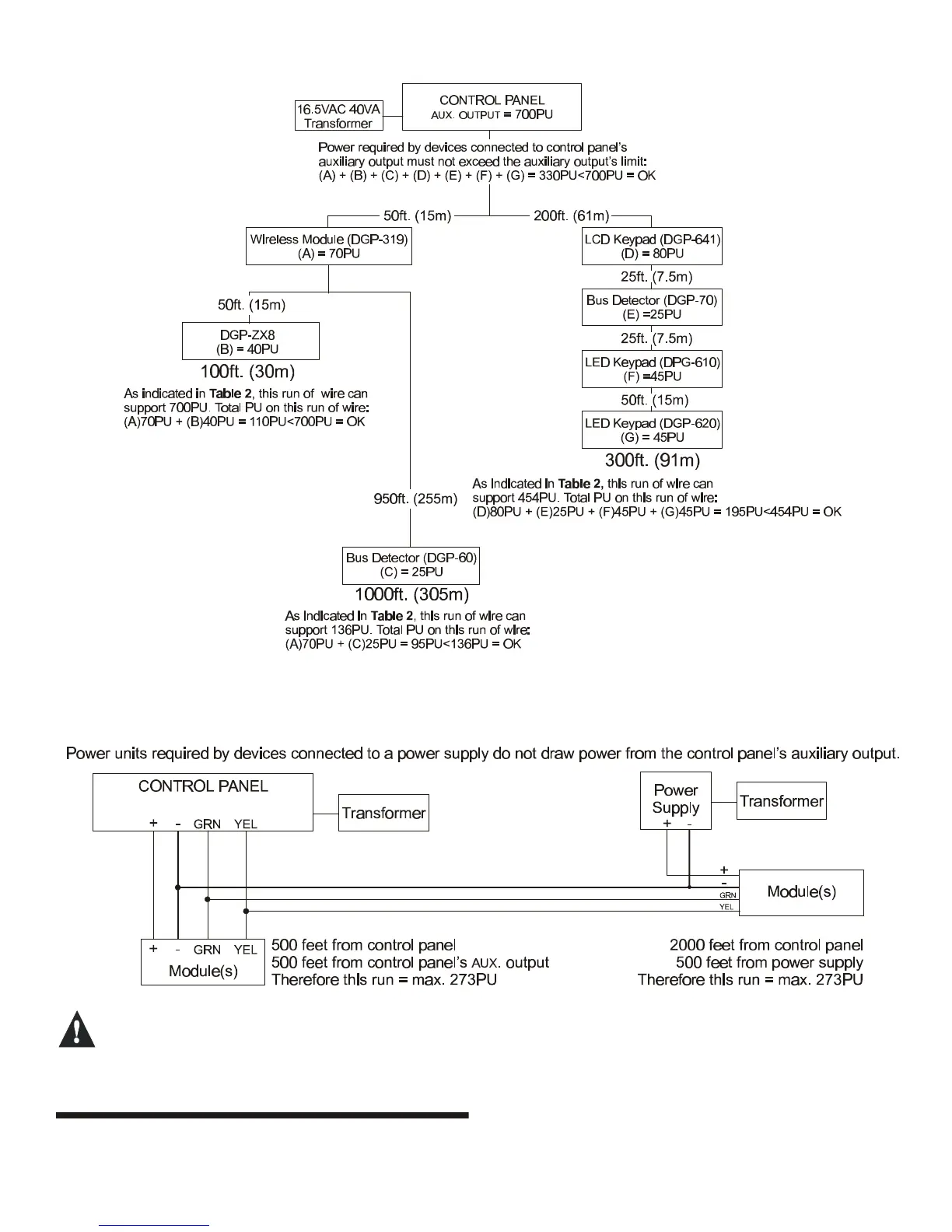

Figure 3-4: Sample Power Requirement Calculations
If in the above example you were to add an LCD Keypad (80PU) to
the 100 foot or 300 foot wire, you would not exceed the wire’s limit.
Although, adding the LCD Keypad to the 1,000 foot wire would
exceed the wire’s limits, thereby causing devices to function at
decreased capacity.
Figure 3-5: External Power Supply Connections
Do not use the same transformer for the control panel and the external power supplies. Modules should never be
installed more than 3,000 feet (914m) from the control panel.
3.9 PROGRAMMABLE OUTPUTS
The Digiplex Control Panel comes standard with PGM1 and
PGM2. PGM3 to PGM5 are optional. When a specific event or
condition occurs in the system, a PGM can be programmed to
reset smoke detectors, activate strobe lights, open/close garage
