DIGIPLEX CONTROL PANEL 47
To activate Bypass Recall, users:
1) Enter their [ACCESS CODE]
2) Press the [BYP] key
3) Press the [MEM] key
4) Press [ENTER] key to exit
16.3 CHIME ZONES
The keypads can be programmed to emit rapid, intermittent beeps
whenever designated zones within their assigned partitions are
opened or when they are opened within a certain time period.
These zones are Chime Zones.
To program a Chime Zone, users:
1) Enter their [ACCESS CODE]
2) Press the [9] key
3) Press the [1] key
4) Enter the zones’ 2-digit number
5) Press [ENTER] key to save
To program a time period when the Chime Zones are activated,
users:
1) Enter their [ACCESS CODE]
2) Press the [9] key
3) Press the [2] key
4) Enter the time that keypads will start beeping when Chime
Zones are opened according to the 24-hour clock (i.e. 9AM is
09:00 and 9PM is 21:00).
5) Enter the time that keypads will stop beeping when Chime
Zones are opened according to the 24-hour clock (i.e. 9AM is
09:00 and 9PM is 21:00).
6) Press [ENTER] key to save
16.4 ACCESS CODES
Refer users to the appropriate User’s Manual: LCD Keypad’s User
Manual, LED Keypads’ User Manual, or the Access Control User’s
Manual.
16.5 NORMAL AND CONFIDENTIAL MODES
For LCD Keypads:
When no actions are being performed on the keypad, the keypad
will remain in Normal Mode as shown in Figure 16-1 and will
automatically display:
• The current status of the zones for every area the keypad is
assigned
• The Alarm Memory Display if any alarms have occurred
• The Trouble Display if any troubles are occurring
• The current state of the Indicator Lights
In Confidential Mode:
• The zones and status messages will NOT be displayed
• The Indicator Lights will not illuminate
Depending on how the keypad was programmed, the user must
press a key or enter a User Access Code to illuminate the Indicator
Lights and activate Normal Mode.

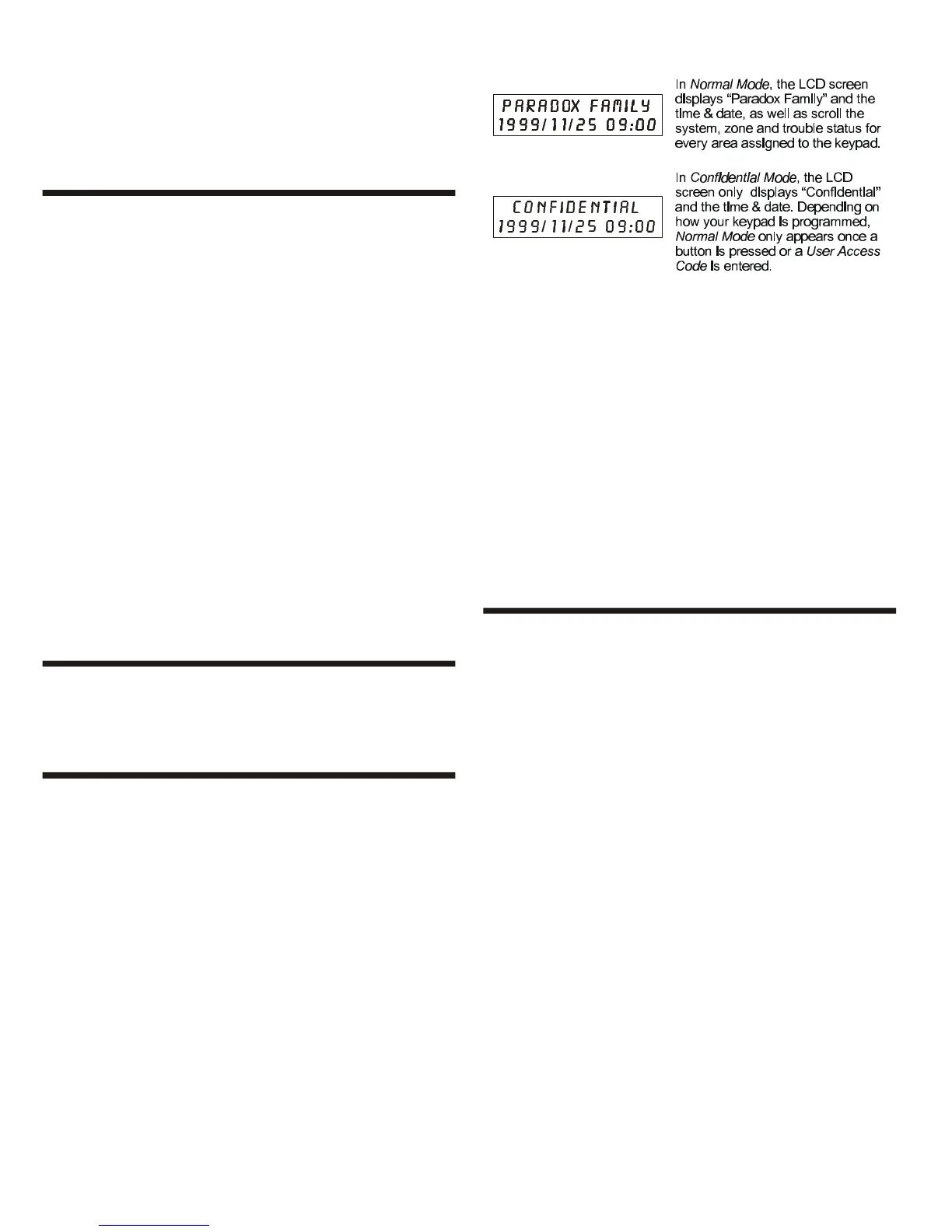

Figure 16-1: Normal and Confidential Mode
For LED Keypads:
When no actions are being performed on the keypad, the keypad
remains in Normal Mode and the LED keypad will illuminate:
• The AC Light if power is present
• The Numerical Symbols representing any open zones
• The Area Symbols if any areas are armed
• The [MEM] Symbol if any alarms have occurred
• The [TRBL] Symbol if any troubles are occurring
• The [BYP] Symbol if zones are bypassed
and shows the status of the STATUS LED.
In Confidential Mode all the LEDs are extinguished. Depending on
how the keypad was programmed, the user must press a key or
enter a User Access Code to illuminate the LEDs and activate
Normal Mode.
16.6 KEYPAD SETTINGS
The keypad’s setting can be modified to suit the user’s needs.
For LCD Keypads:
1) Scrolling Speed: how long the messages will stay on the LCD
screen before moving to the next message.
2) Contrast: how dark or pale characters will appear on the LCD
screen
3) Backlight: the illumination behind the keys and the screen
Use the System Master Code to modify the settings as shown in
Figure 16-2 on page 48.
