DIGITAL-LOGIC AG PCCP5 Manual V2.3
110

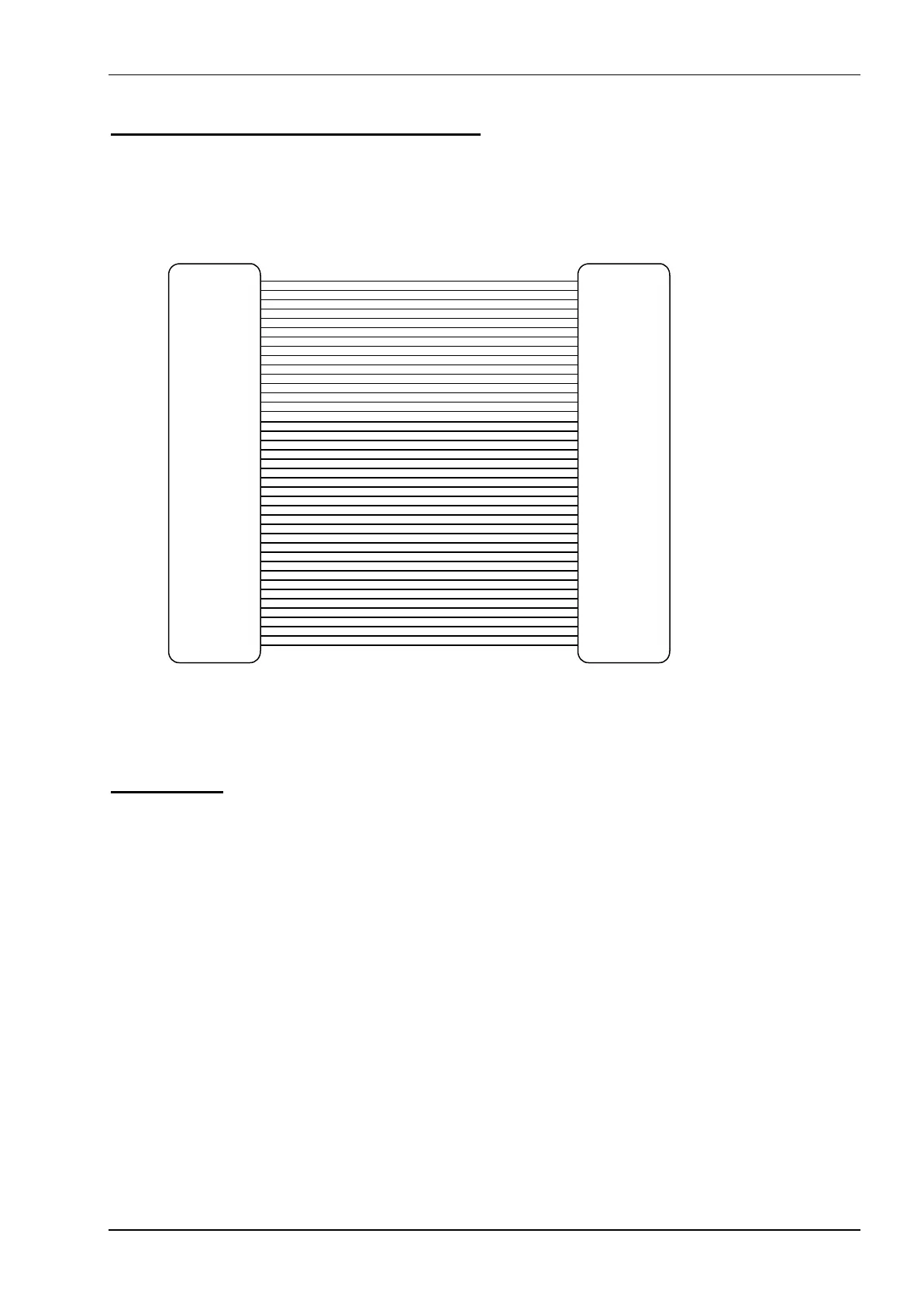

7.2 The Harddisk Cable 40 pins
IDT terminal for dual row 0.1" (2.54 mm grid) and 1.27 mm flat cable. 40 pins signal, power is separately
wired. Refer to the technical manual of the harddisk used.
1 2
39 40
1 2
39 40
Max. length for IDE cable is 30 cm.
ATTENTION:
A maximum of two IDE drives can be connected to the HD-Interfaces. The first drive must always be the
MASTER drive (= C:) and the second is the SLAVE drive. Check the selection of the drive in the technical
manual. An inverse connection could destroy the drive or the MICROSPACE PCC-P5. Be very careful. There
is no warranty in this case.
