E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
2

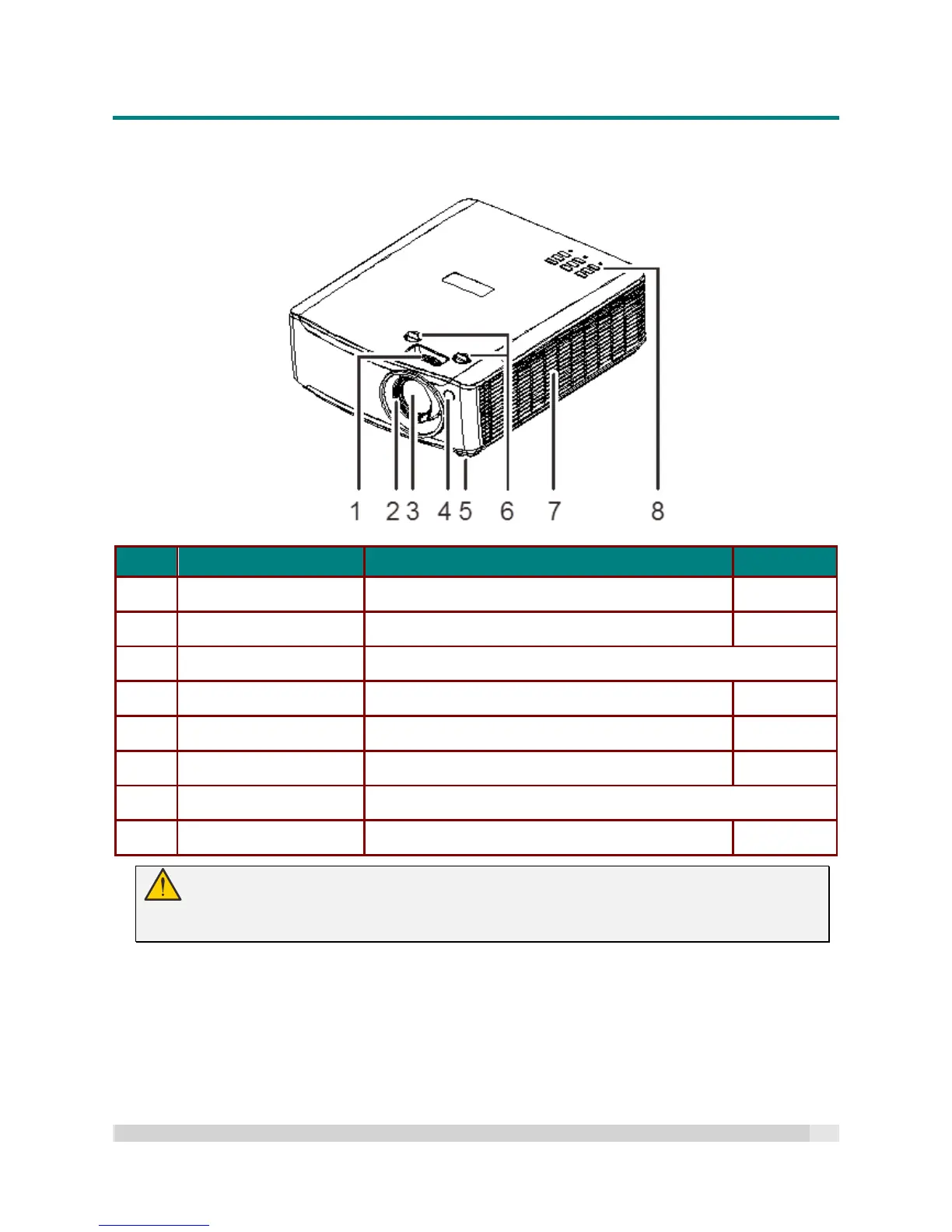

Views of Projector Parts
Front-right View
ITEM LABEL DESCRIPTION SEE PAGE
1.
Zoom Ring Enlarges the projected image.
20
2.
Focus Ring Focuses the projected image.
20
3.
Lens Projection Lens.
4.
IR Receiver Receives the IR signal from the remote control.
11
5.
Tilt Adjuster Foot Rotate the adjuster to adjust angle of projection.
17
6.
Lens Shift Adjusts the image position vertically and horizontally.
18
7.
Vent Cool air intake.
8.
Function Keys On-Screen Display (OSD) buttons.
3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector light
source cool. Do not obstruct any of the ventilation openings.
