Digital Projection E-Vision Laser 5000 XGA - Bottom View

Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
6

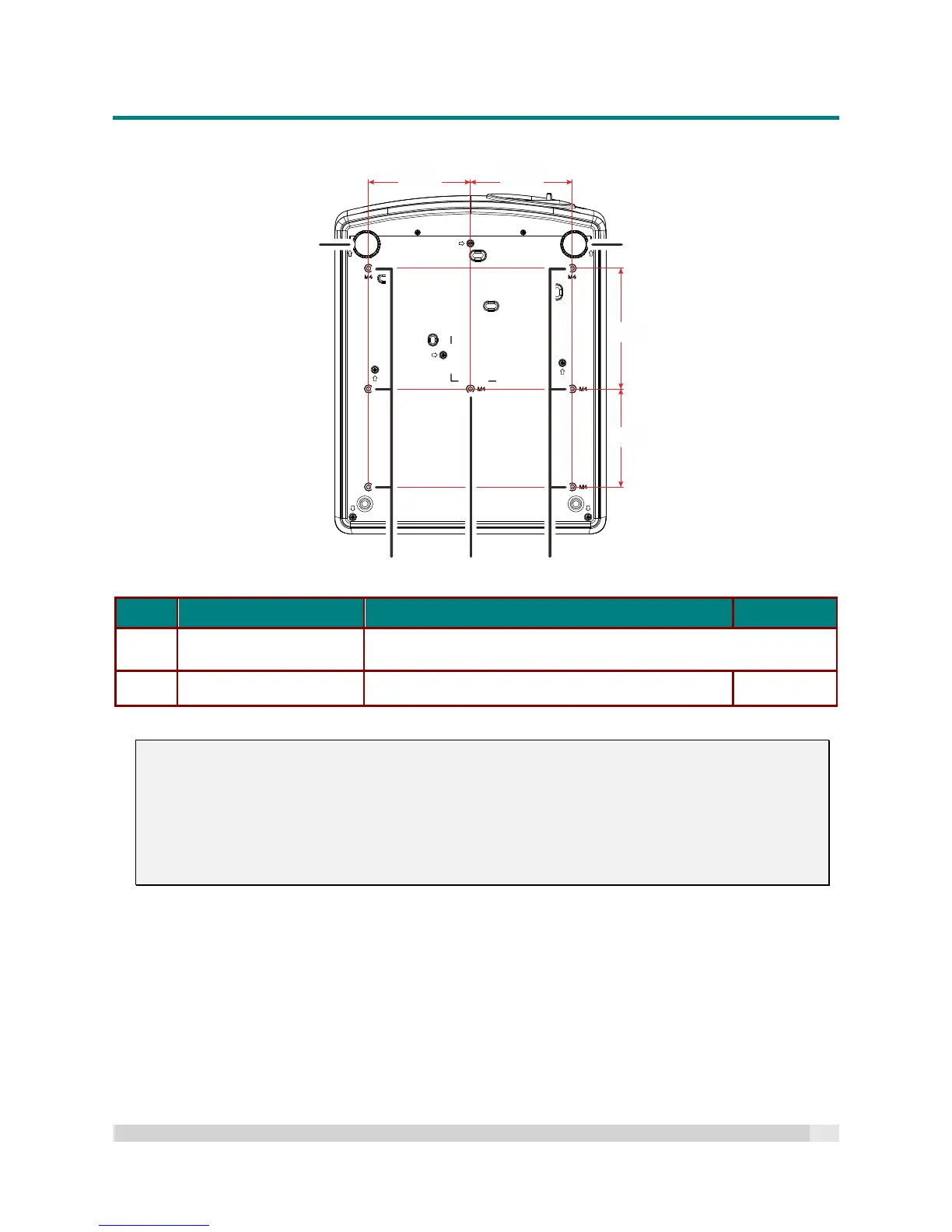

Bottom view
ITEM LABEL DESCRIPTION SEE PAGE
1.
Ceiling Mount Holes
Contact your dealer for information on mounting the projector on a
ceiling.
2.
Tilt Adjuster Foot Rotate the adjuster to adjust angle of projection.
17
Note:
When installing the projector, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength.
The ceiling mount load capacity must exceed the weight of the installed equipment, and as an
additional precaution be capable of withstanding three times the weight of the equipment over a
period of 60 seconds.
135.0mm
[ 5.31" ]
135.0mm
[ 5.31" ]
160.0
[ 6.30" ]
130.0
[ 5.12" ]
111
2
2
