E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
3

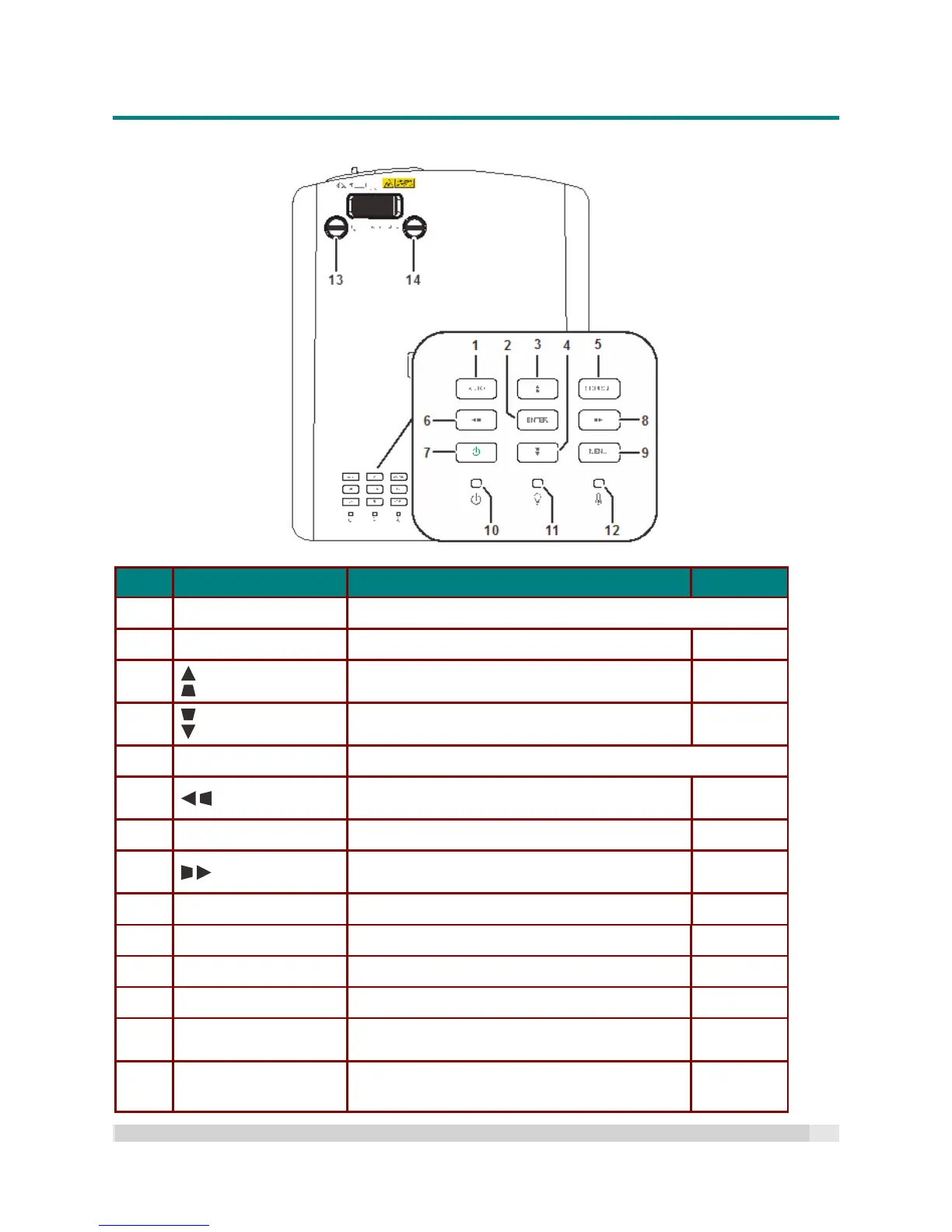

Top view—On-screen Display (OSD) buttons and LEDs
ITEM LABEL DESCRIPTION SEE PAGE
1.
AUTO Optimizes image size, position, and resolution.
2.
ENTER Enters or confirms a highlighted OSD menu item.
22
3.
Navigates and changes settings in the OSD.
Quick Menu – For Vertical Keystone.
22
4.
Navigates and changes settings in the OSD.
Quick Menu – For Vertical Keystone.
22
5.
SOURCE Enters the Source menu.
6.
Navigates and changes settings in the OSD.
Quick Menu – For Horizontal Keystone.
22
7.
Power Turns the projector on or off.
13
8.
Navigates and changes settings in the OSD.
Quick Menu – For Horizontal Keystone.
22
9.
MENU Opens and exits OSD menus.
22
10.
Power LED Displays the power on/off sequence status.
61
11.
Light source LED Displays the light source status.
61
12.
Temp LED Displays the thermal status.
61
13.
Vertical Lens Shift
(UP / DOWN)
Adjusts the image position vertically.
18
14.
Horizontal Lens Shift
(LEFT / RIGHT)
Adjusts the image position horizontally.
18
