Reference drawings for stand
Please hire an installation service provider (for a fee) for the design and manufacture of a customized
stand to be used for portrait projection. Please ensure that the design complies with the following
conditions:
Use the 7 mounting screw holes at the back of the projector to secure it to the stand.
Screw hole center dimension: 290 (pitch = 160, 130) × 270 (pitch = 135) mm
Screw hole dimension on the projector: M4 with a maximum depth of 12 mm
Horizontal adjustment mechanism (for example, bolts and nuts in 4 places)
Please design the stand so that it does not topple over.

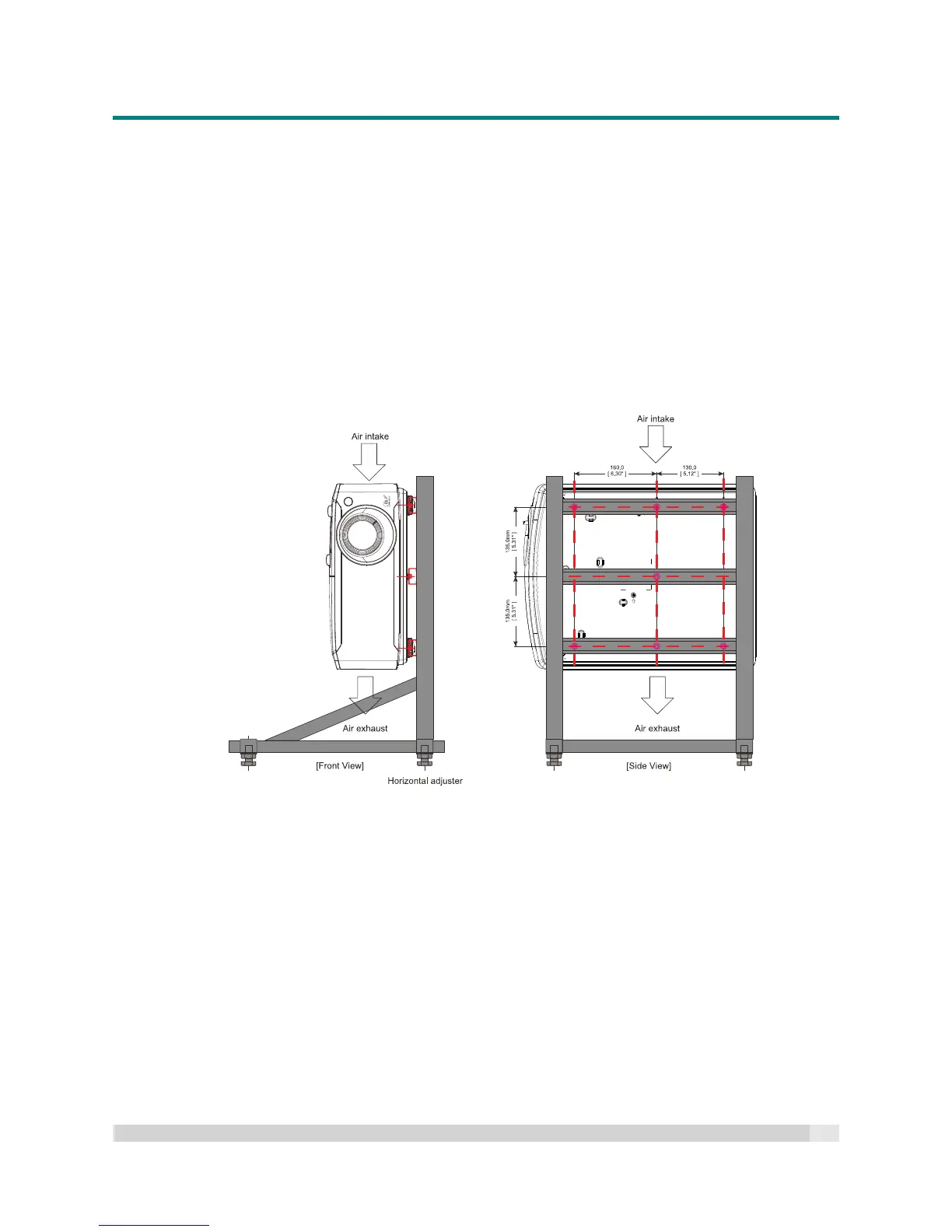

The drawing below illustrates the dimensional requirements; it is not an actual stand design drawing.
