Fine Sync: To fine-tune the position and other image attributes, choose Fine Sync from the Advanced menu and press
ENTER. This displays the Fine Sync sub-menu, shown in Figure 4-10.

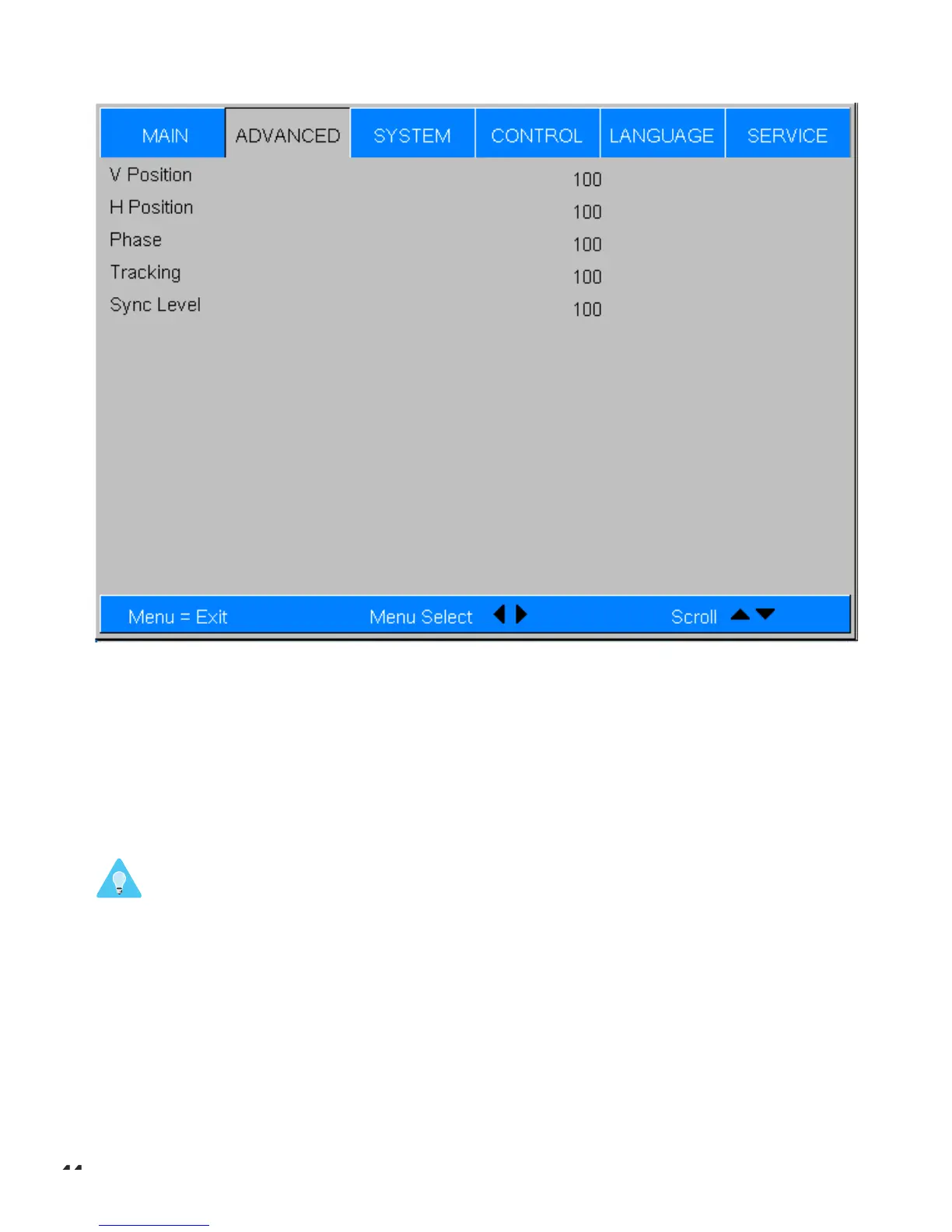

Figure 4-10: Fine Sync Sub-Menu
• V Position: This control adjusts the vertical position of the image within the designated image area, up to 25 per cent
of the image height up or down.
• H Position:
• This control adjusts the horizontal position of the image within the designated image area, up to 25 per cent of the
image width left or right.
• Phase (RGB or Component sources): This control adjusts the phase of the pixel sampling clock relative to the in-
coming signal. Adjust the phase when an RGB or Component image still shows shimmer or “noise” after Tracking
has been optimized.
Adjust!the!Ph ase!after!adjusting!Tracking!(see!below).!If!some!shimmer!from!a!video!or!HDTV
!
Tip
source!persists,!use!the!Noise!Reduction!controls!(described!on!page!44)!to!remove!high‐frequency!
noise!from!the!signal.
!
For best results, use a good test pattern such as a smooth gray consisting of a clear pattern of black and white
pixels, or a similar “half on, half off” graphic image. Adjust the slidebar until the image stabilizes and each pixel is
clearly defined. You may notice that you can stabilize the image at more than one point. Use either setting in such
cases.
