DCS-3950 series Ethernet switch manual
Chapter 7 Port Configuration
7.1 Port Introduction

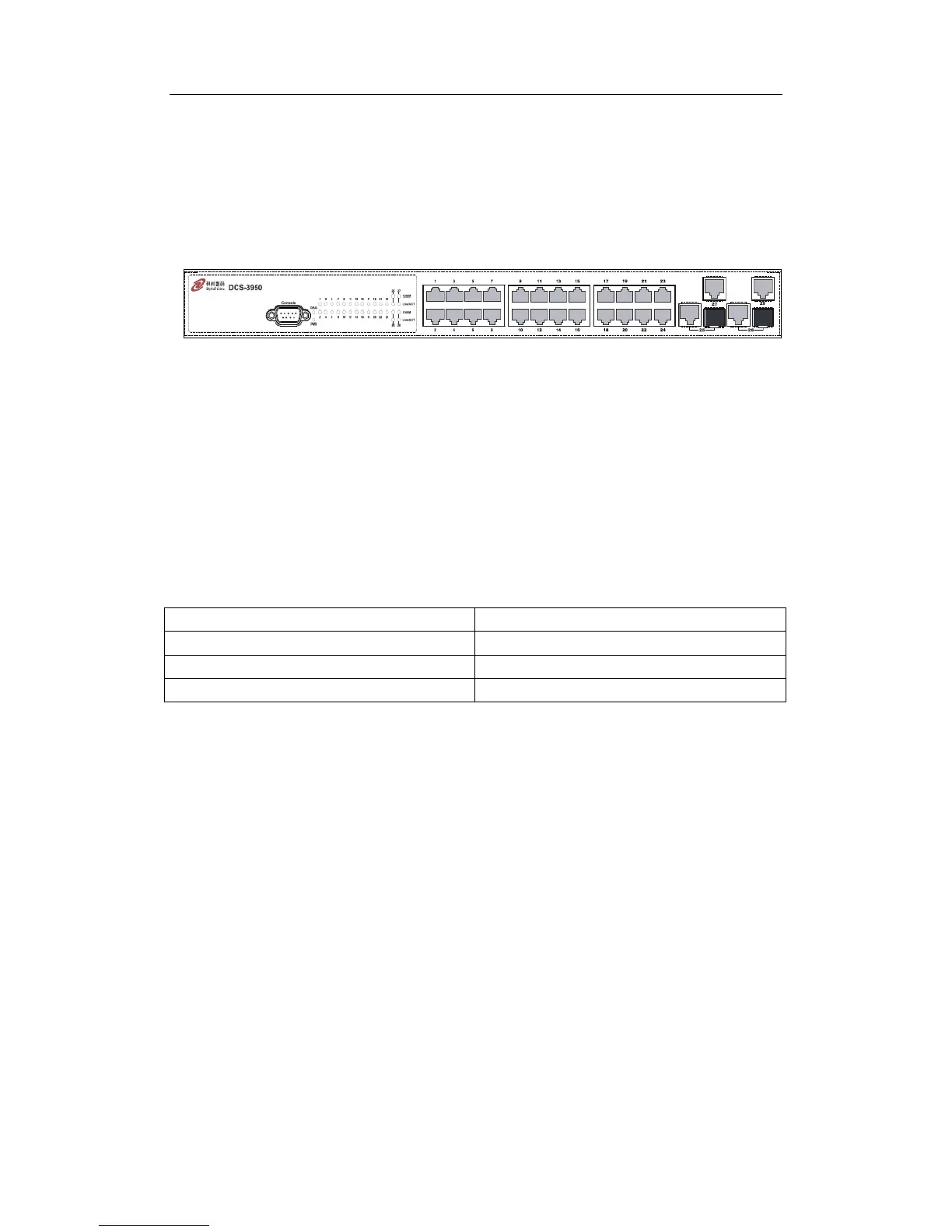

Fig 7-1 Ports on DCS-3950-28CT
The ports on DCS-3950 series are showed in the above picture (take
DCS-3950-28CT as an example). DCS-3950-28CT provides 24＋2＋2 ports, 24 of which
are 10/100Base-TX ethernet interfaces with fixed configuration, 2 of which are
1000Base-TX/1000Base-FX single/multi mode interfaces, the other 2 of which are
1000Base-TX stack interfaces.
On the panel of DCS-3950-28CT, each port is marked with a port ID. The relationship
between these port IDs and the port IDs provided by the DCS-3950-28CT operating
system (software port IDs)is listed as follows:
Physical port ID Software port ID
24 10/100Base-T ethernet 0/0/1-24
2 1000Base-TX/1000Base-FX ethernet 0/0/25-26
2 1000Base-TX ethernet 0/0/27-28
If users want to configure some ports, they can use the command interface ethernet
<interface-list> to enter corresponding ethernet port configuration mode, the parameter
<interface-list> can be 0/0/1-28. When <interface-list> contain more than one ports,
please use special charactuer including’;’and ‘-’ to connect them. In the ethernet port
configuration mode, the port rate, duplex mode and the traffic control can all be configured,
in response, the performace of corresponding ports will change accordingly.
7.2 Port Configuration
7.2.1 Network Port Configuration
7.2.1.1 Network Port Configuration Task List
1. Enter the network port configuration mode
2. Configure the properties for the network ports
