DCS-3950 series Ethernet switch manual
Chapter 14 802.1x Configuration
14.1 Introduction to 802.1x
IEEE 802.1x is a port-based network access management method, which
authenticates and manages the accessing devices on the physical access level of the
LAN device. The physical access level here is the ports of the switch. If the users’ devices
connected to such ports can be authenticated, access to resources in the LAN is allowed;
otherwise, access will be denied, which is essentially the same as disconnecting
physically.
IEEE 802.1x defines a port-based network access management protocol. It should be
noted that the protocol applies to point-to-point connection between the accessing device
and the access port, where the port can be either a logical port or a physical port. Typically,
one physical port of the switch connects with one terminal device (physical port-based)
only.

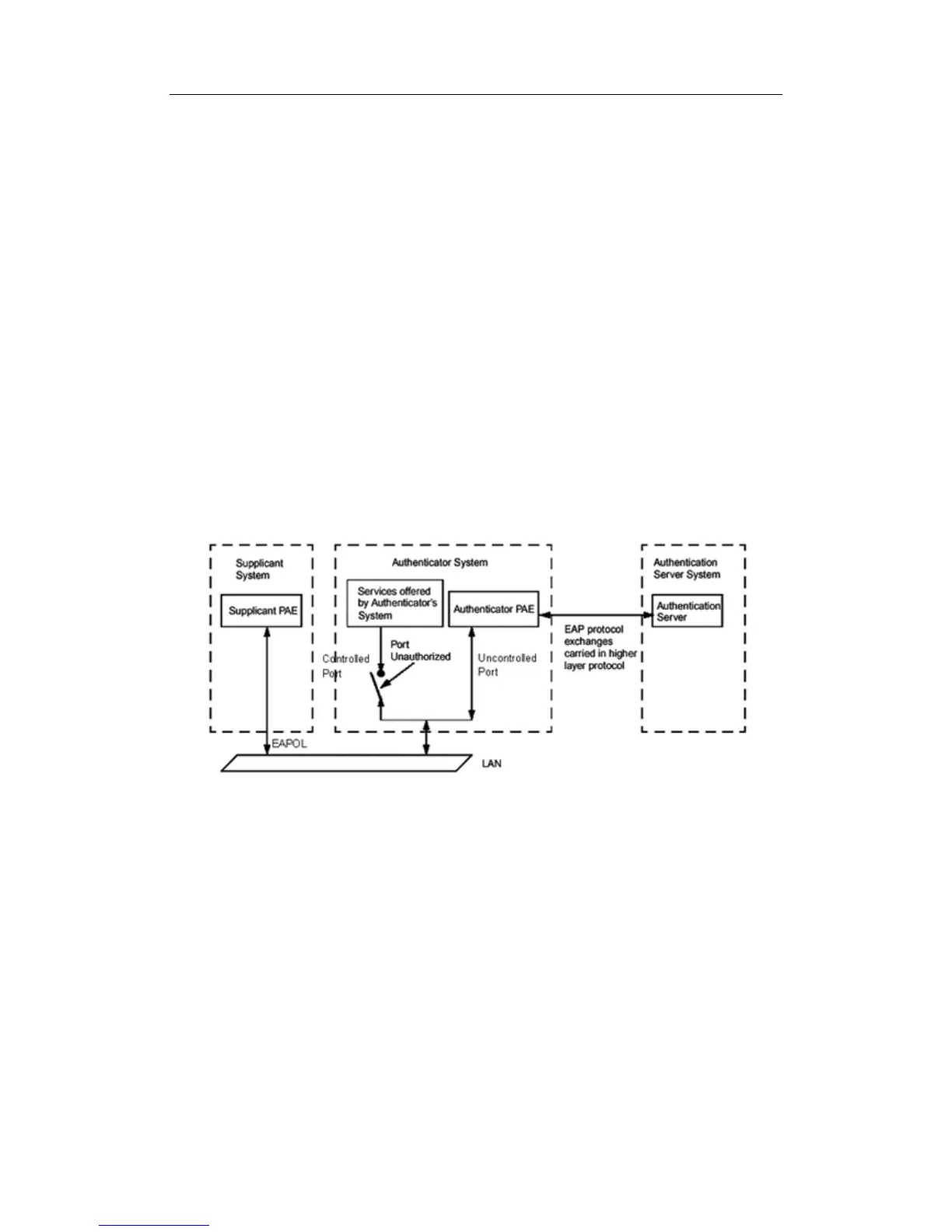

The architecture of IEEE 802.1x is shown below:
Fig 14-1 802.1x architecture
As shown in the above figure, the IEEE 802.1x architecture consists of three parts:
îš„ Supplicant System (user access devices)
îš„ Authenticator System (access management unit)
îš„ Authentication Server System (the authenticating server)
EAPOL protocol defined by IEEE 802.1x runs between the user access device (PC)
and access management unit (access switch); and EAP protocol is also used between the
access management unit and authenticating server. EAP packets encapsulate the
authenticating data. The EAP packet is conveyed in the packets of the higher layer
protocols such as RADIUS to pass through complex network to the authenticating server.
The ports provided by the port-based network access management device end are
divided into two virtual port types: managed port and non-managed port. A non-managed
port is always in the connected status for both in and out directions to transfer EAP
