DCS-3950 series Ethernet switch manual

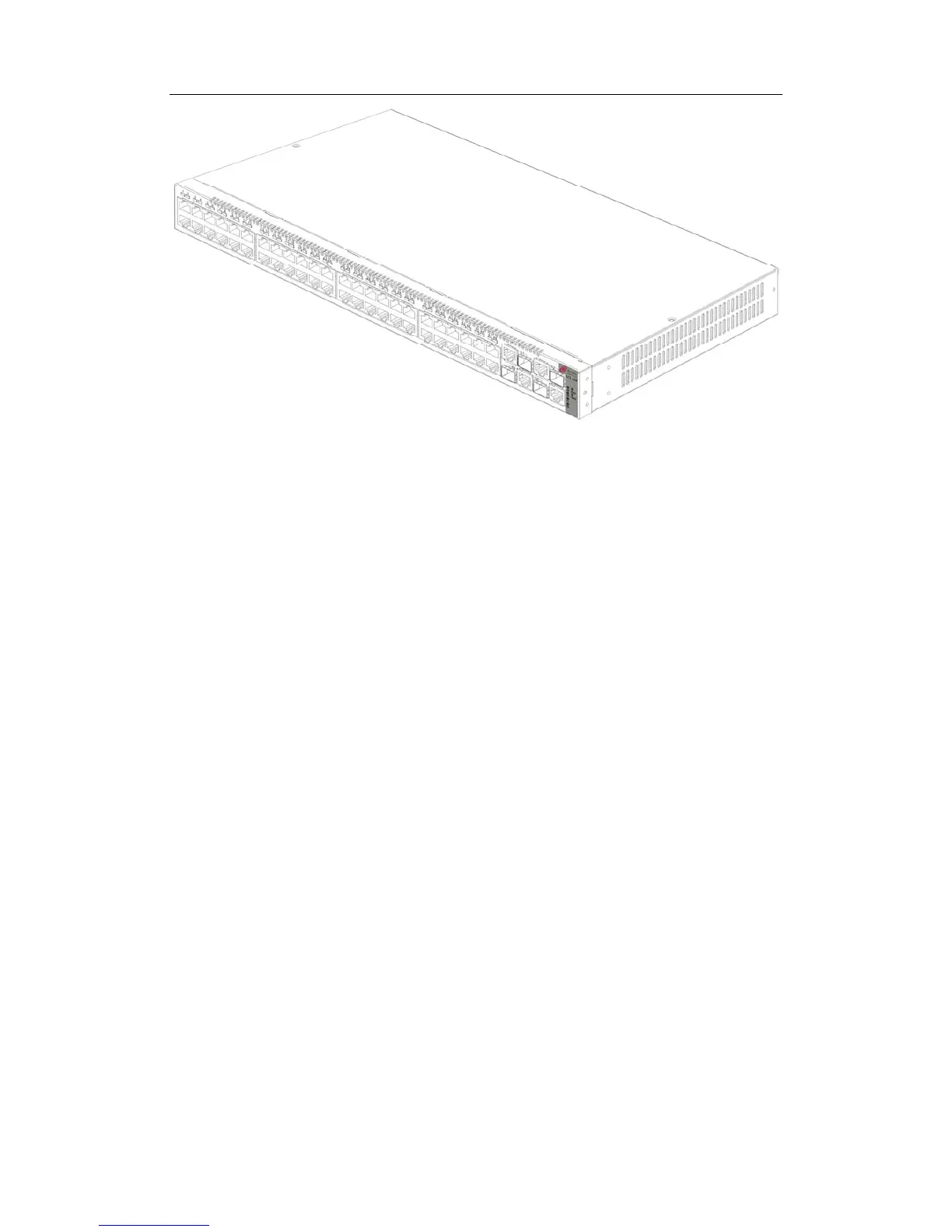

Fig 1-5 DCS-3950-52C switch
1.1.1 Overview
The DCS-3950 series Intelligent Stackable Secure Ethernet Access Switch can not
only be utilized in large-scale enterprise networks，campus networks and metropolitan area
networks
as access equipment, but also can meet the demand for network of
medium-scale office environment. This series of switch has unique network access
functions and flexible management of network, including MAC binding/filtering, limiting the
total number of Mac addresses, IEEE802.1Q VLAN, PVLAN, IEEE802.1x access
authentication, QoS, ACL, bandwidth control, IEEE802.3ad TRUNK, IGMP Snooping,
broadcast storm suppression, IEEE802.1d/w spanning tree, port mirroring and so on.
1.1.2 Features and Benefits
 MAC Address Control
Besides the standard dynamic learning capability of MAC address, the DCS-3950
series also supports several other methods of management based on the MAC address
list. The MAC address binding function can restrict the MAC addresses of access
equipment connected to a port, in order to keep access secure. The MAC address filtering
function can filter according to source and destination MAC addresses to block the invalid
access equipment.
 VLAN Configuration
The DCS-3950 series supports standard IEEE802.1Q VLAN, port-protect VLAN and
PVLAN. IEEE802.1 Q VLAN can divide ports into several VLAN groups, the upper limit of
which is 4094. It can also do multi-switch VLAN division via IEEE802.1 Q VLAN tag, and
thus manage to control broadcast traffic, guarantee the security and performance of the
