7. Test the operation of the outreach limit switch RK4
Platform load about 120 kg
120 kg
PLATFORM LOAD

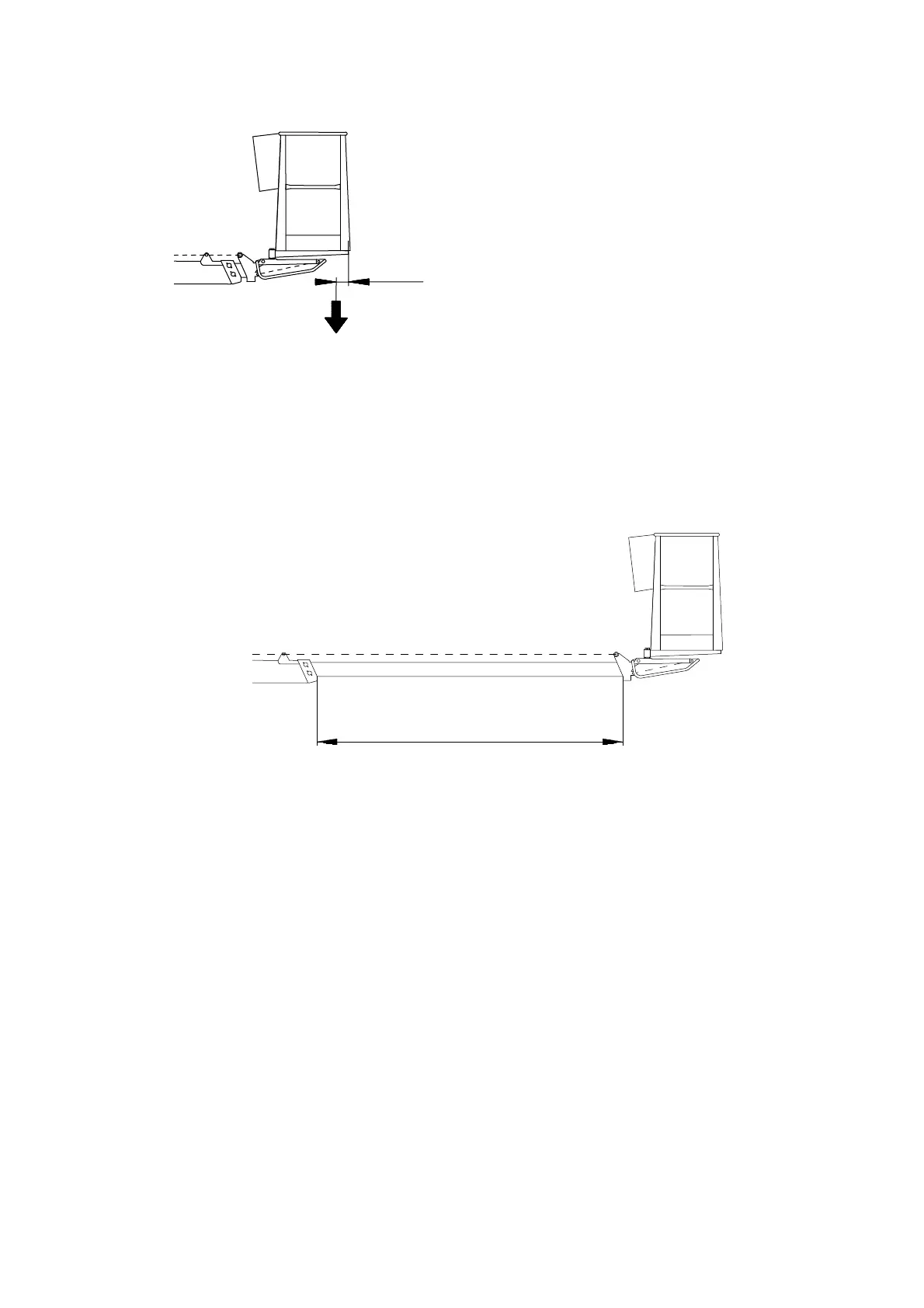

Drive the boom to the horizontal position and extend the telescope with a load of 120 kg
on the platform at the spot designated in the drawing.
As the movement stops the red overload light (H1) must flash.
Compare the stroke length with the value given in the chapter ”TESTING THE
OUTREACH LIMIT” in this manual. If the stroke exceeds the allowed value, contact the
service person.
Warning!
Do not add load (e.g. another person) onto the platform while the red overload light (H1) is flashing.
Example: A person, who is working alone on the work platform, extends the telescope, or an empty
platform is driven from the chassis control panel to the maximum reach keeping it close to the ground. If
the overload signal light now lights up, the telescope must be retracted before loading the work platform
further.
IF THE SAFETY DEVICES OR THE EMERGENCY DESCENT SYSTEM ARE NOT
WORKING, HAVE THEM REPAIRED BEFORE OPERATING THE LIFT!
8. Measures to be taken after overloading occurs.
(The overload limit switch RK5 switches off the electric circuit of the operating controls and
switches on the buzzer on the platform)
STROKE
100 mm
