DINO 240RXT
29
- retract the platform to inside the operating range of the RK4 by pushing the "telescope in" -
button (S30 or S31)(the red signal light stops flashing)
- after this the lift may be operated normally
The "telescope in" -button (S30 or S31) is always operational when the engine is running.
9. Refer to the item "Daily inspections" in the task list for servicing.
10. With the boom slightly lifted and the telescope extended, make sure that the platform does not
lower of itself while the operating controls are not being used.
11. When working under cold weather conditions, let the engine run for a while without load to
increase the hydraulic oil temperature. Start the operations by driving the movements carefully
without load back and forth from the chassis control panel.
12. Move the platform to the work object
The platform movements can be operated with continually adjustable speed from the platform control
panel (not from the chassis control panel). The movements can be operated simultaneously. If several
control levers are operated simultaneously, the speed of individual movements decreases.
DO NOT TAKE ADDITIONAL LOAD IN THE UPPER POSITION!
NOTE!
Lowering the platform to transport position: Always before lowering the boom onto the transport
support, retract the telescope completely and turn the platform perpendicular to the boom.
13. Observe when lifting the platform
- the operating range of the platform depends on the load (see Technical Data) and is monitored by
the safety limit switches RK4 and RK5, which are located under the protecting cover
The limit switches must not be adjusted or modified. The inspection and adjustment may only be
carried out by an authorized serviceman.

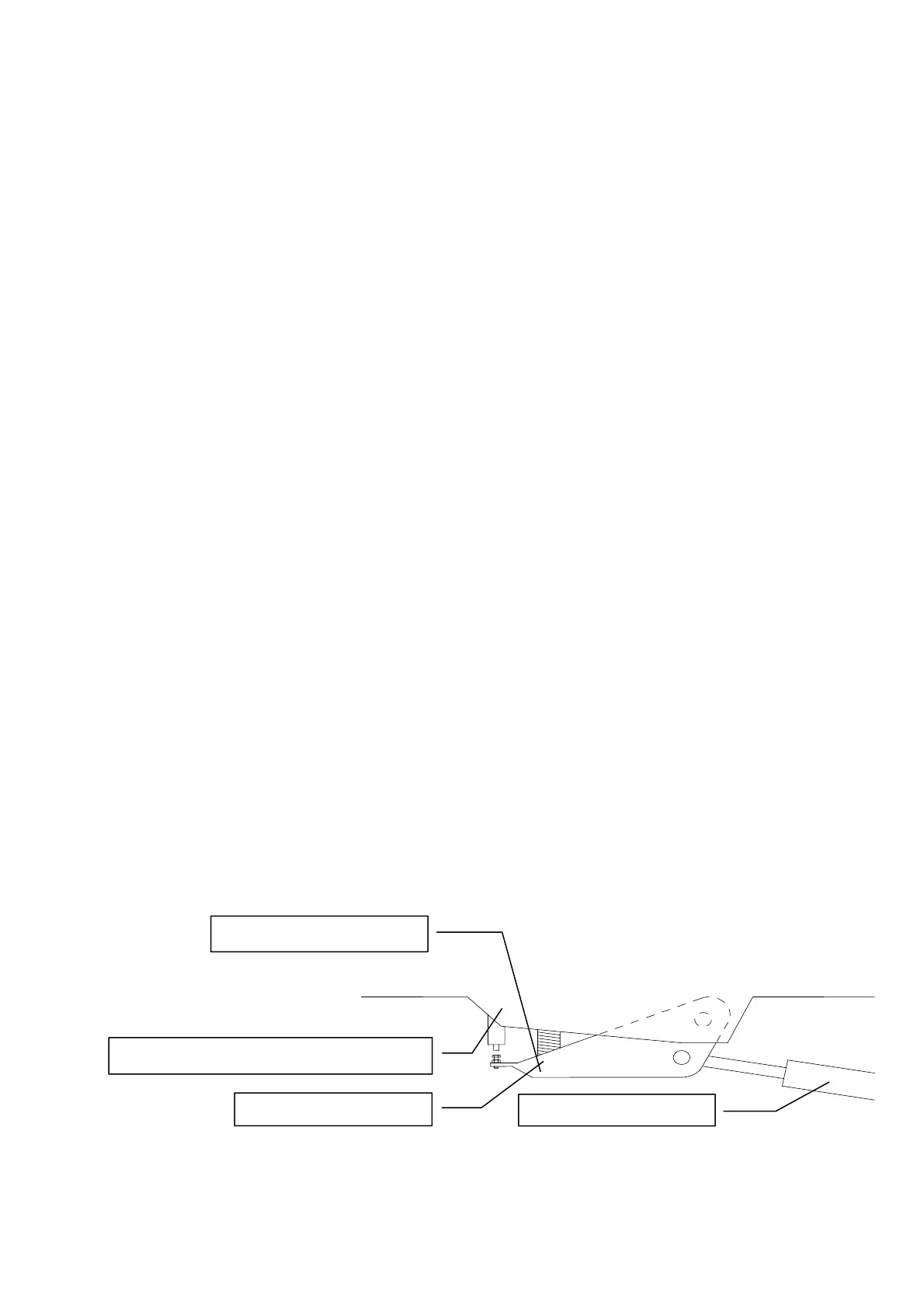

PRESSURE SPRING
LIMIT SWITCHES RK4 AND RK5
ARTICULATED ARM LIFTING CYLINDER
