DINO 240RXT
46
6. Inspection of the boom and the chassis
- extend the telescope and inspect the platform, its attachment, the articulated arms and the boom
- inspect the boom joints and play of the sliding pads, readjust if necessary. Lubricate the sliding
surfaces

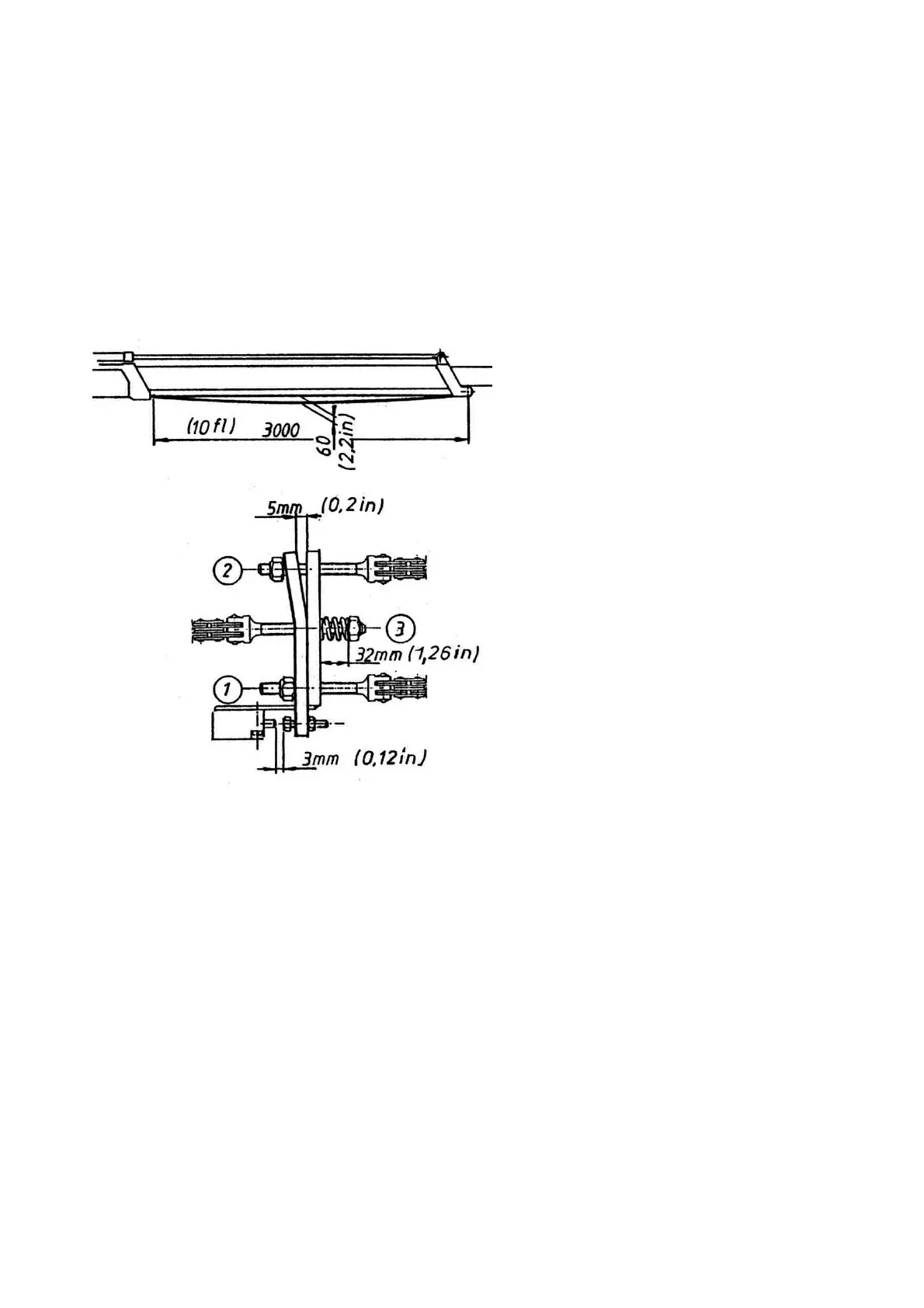

- check the condition, locking and adjustment of the Flyer-chains
- secure the attachment to the boom of the unloaded flyer-chain by pulling the chain by hand with the
boom fully extended
- inspect the turning device and its attachment and lubricate the bearing (4 nipples)
NOTE! Excess grease pressure may press out the turning bearing seal.
- check the turning bearing play
Max. allowed axial play is about 1 mm.
- check the attachment bolts for the turning device for tightness: 280 Nm (M16)
150 Nm (M12)
If you have to turn open or tighten the attachment bolts, do not forget to use bonding adhesive (tighten
crosswise)
- check the chassis and the welded seams on it; especially around the turning device and attachment
points of the outriggers
inspect the outriggers.
- lubricate the bearings of the boom and outrigger joints
