DINO 240RXT
55
Adjust the RK4 to closer than the RK5.
At first retract the telescope and after that extend it until it stops. (Do not correct the position of the
platform).
Measure the length of the protruding part of the telescope extension (stroke). The length shall be 1,800
mm ±50 mm.
Tighten the locking nut for adjustment and check once more the set values of the RK4.
Apply a safety wire to the adjustment screws in such a way that it will be impossible to turn the screws
outwards from the limit switches.
Apply a seal on the wire.
The gap between the adjustment screw and the tip of the limit switch RK4 shall be 1 -3 mm.
Put the cover in place.

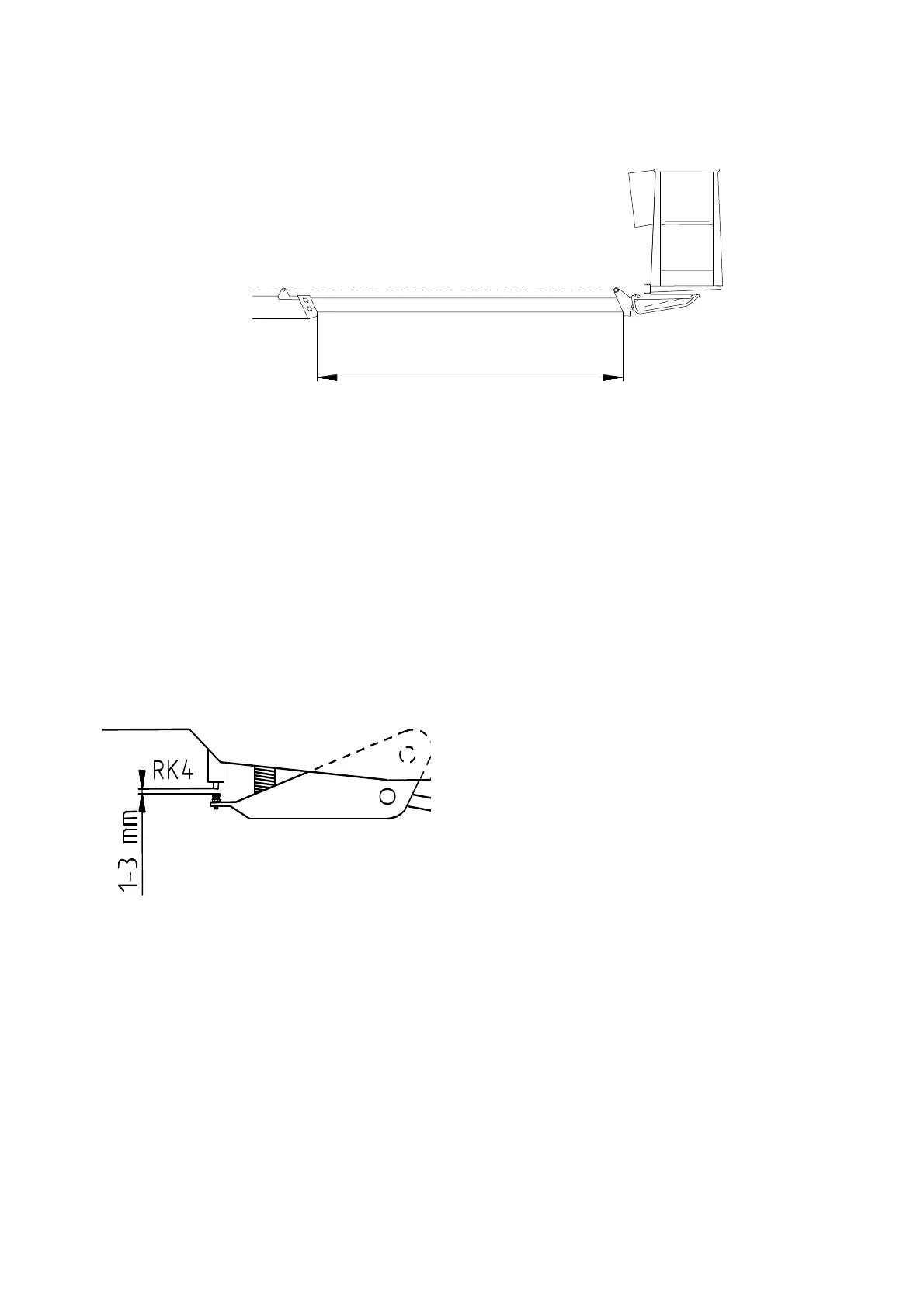

STROKE
