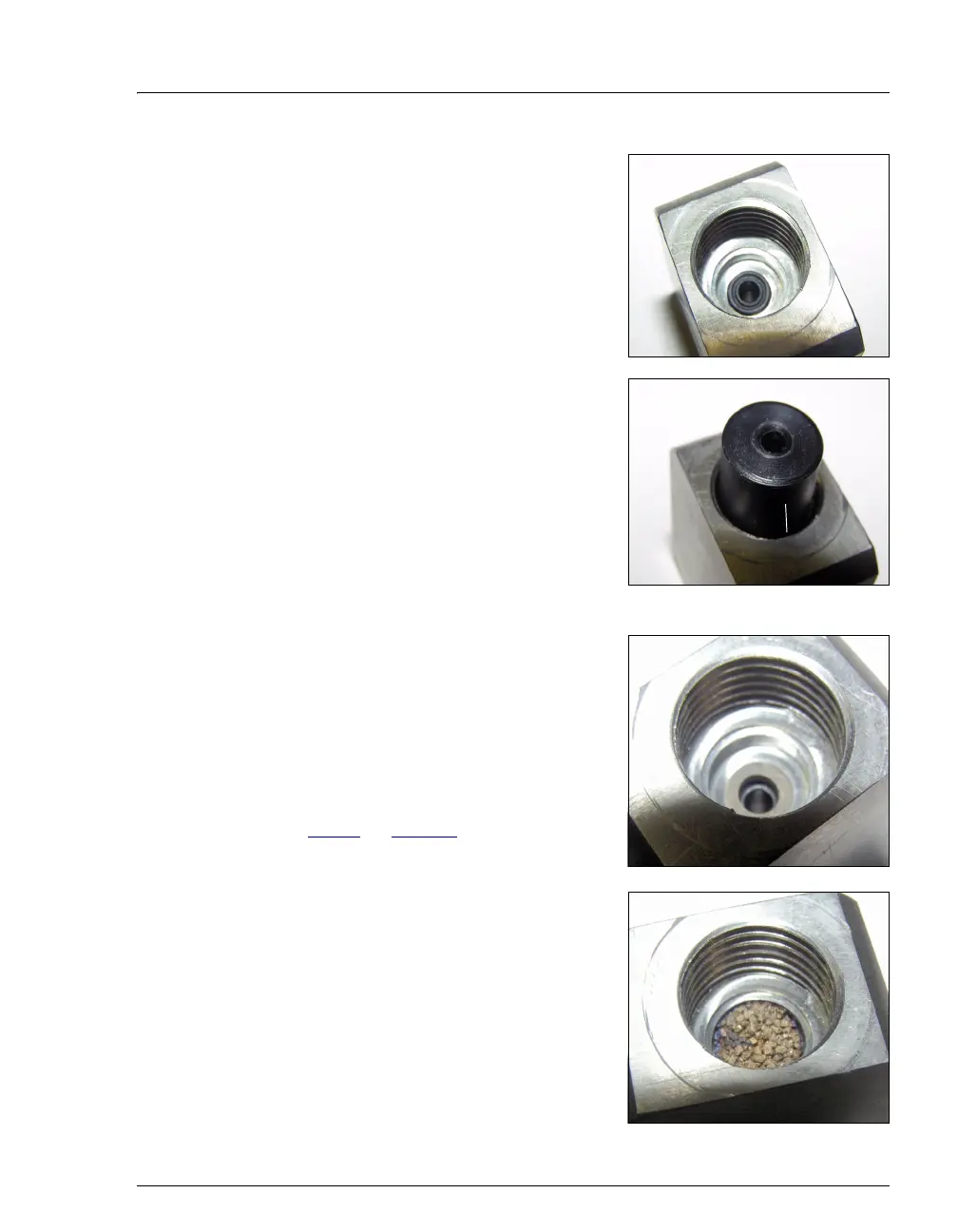

6. Place a new seal (P/N 066165), with
the O-ring side facing up, into the
inlet gland (large opening) of the
valve body.
7. Use the inlet-side seal insertion tool
(P/N 067395) to press the new seal
into place.
5.8.4 Reassembling the Static Valve
1. Place the seal backup ring, with the
flat side facing up, on top of the seal
in the inlet gland. When correctly
installed, the backup ring completely
covers the mounting surface.
NOTE: The seal backup ring was
removed from the valve body in
Step 1
on page 90.
2. Place the new filter (P/N 067327) on
top of the backup ring. Check that
the filter is seated, lies flat, and is
centered in the inlet gland.
Inlet-Side
Seal Insertion Tool
