DKS Standard - 6002 Opening to the Inside

6400-065-C-1-09
14

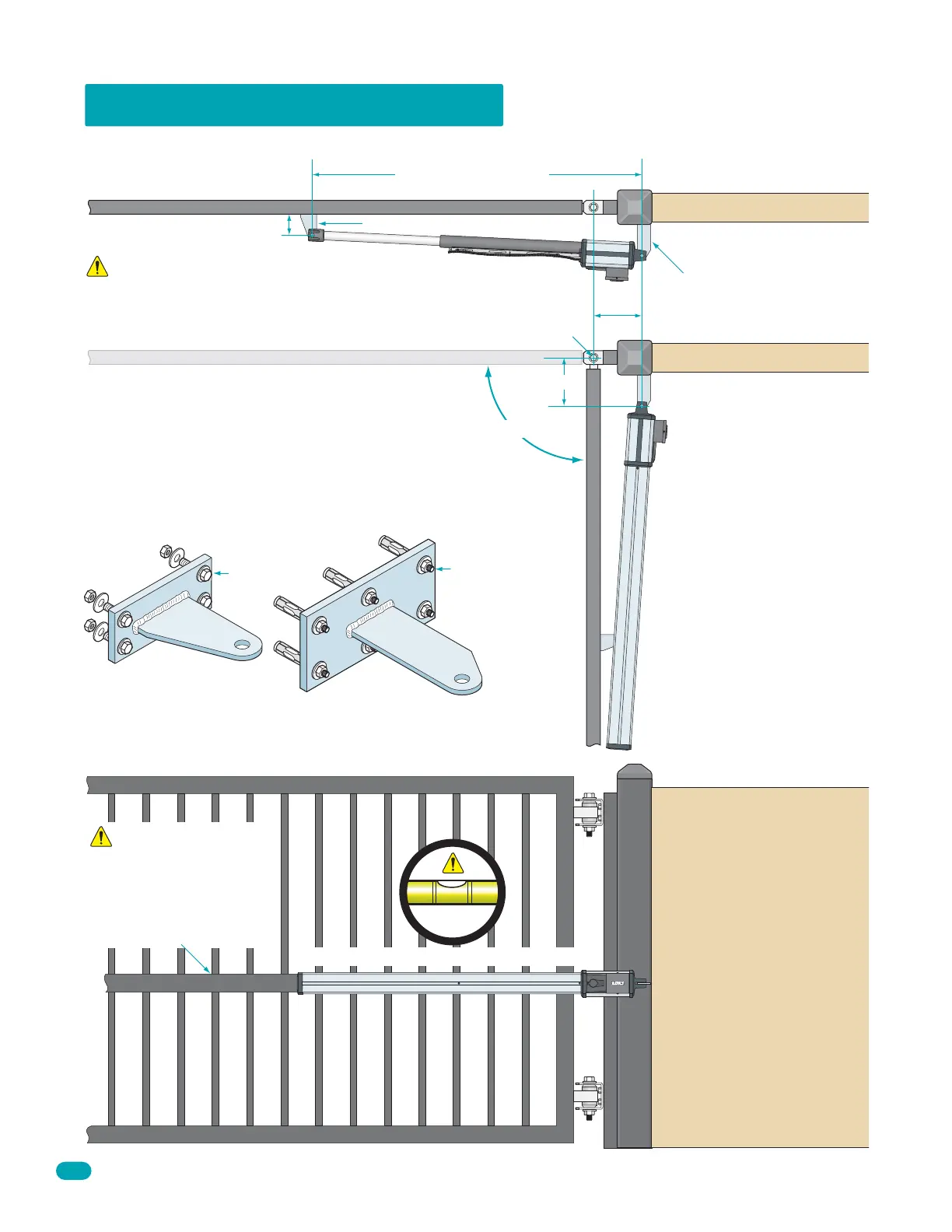

6002 “Opening to the Inside”
46
3
/4” Closed Position
7”
7”
90°
Gate Hinge Pivot Point
Reinforced
Steel Plate
(Not Supplied)
Concrete
Sleeve
Anchors
(Not Supplied)
Bolts with
Lock Washers
(Not Supplied)
Reinforced
Steel Plate
(Not Supplied)
Front Bracket Pivot Point
Rear Bracket
Rear Bracket
(Supplied)
Front Bracket
(Supplied)
Front Bracket
Rear Bracket Pivot Point
Open Position
(Cover On)
Closed Position
(Cover Off)
A support bar must span
the entire length of the
gate to support the gate
pickets. The pickets will
bend if not supported.
Support Bar
Do not install the actuator in fully
extended (Bottomed out) position.
This will damage the arm. See page
16 to prevent this from happening.
3
1
/8”
Mechanically Attaching Brackets
to Surfaces
When mounting brackets with bolts to
the wall and/or gate, weld reinforcing steel plates to the
brackets. Completely weld around brackets. The brackets must
be perpendicular to the wall and/or gate and horizontally level.
Gate in Closed Position
Actuator arm and brackets MUST be level!
