6400-065-C-1-09
15
Open Position
(Cover Off)
Closed Position
(Cover On)

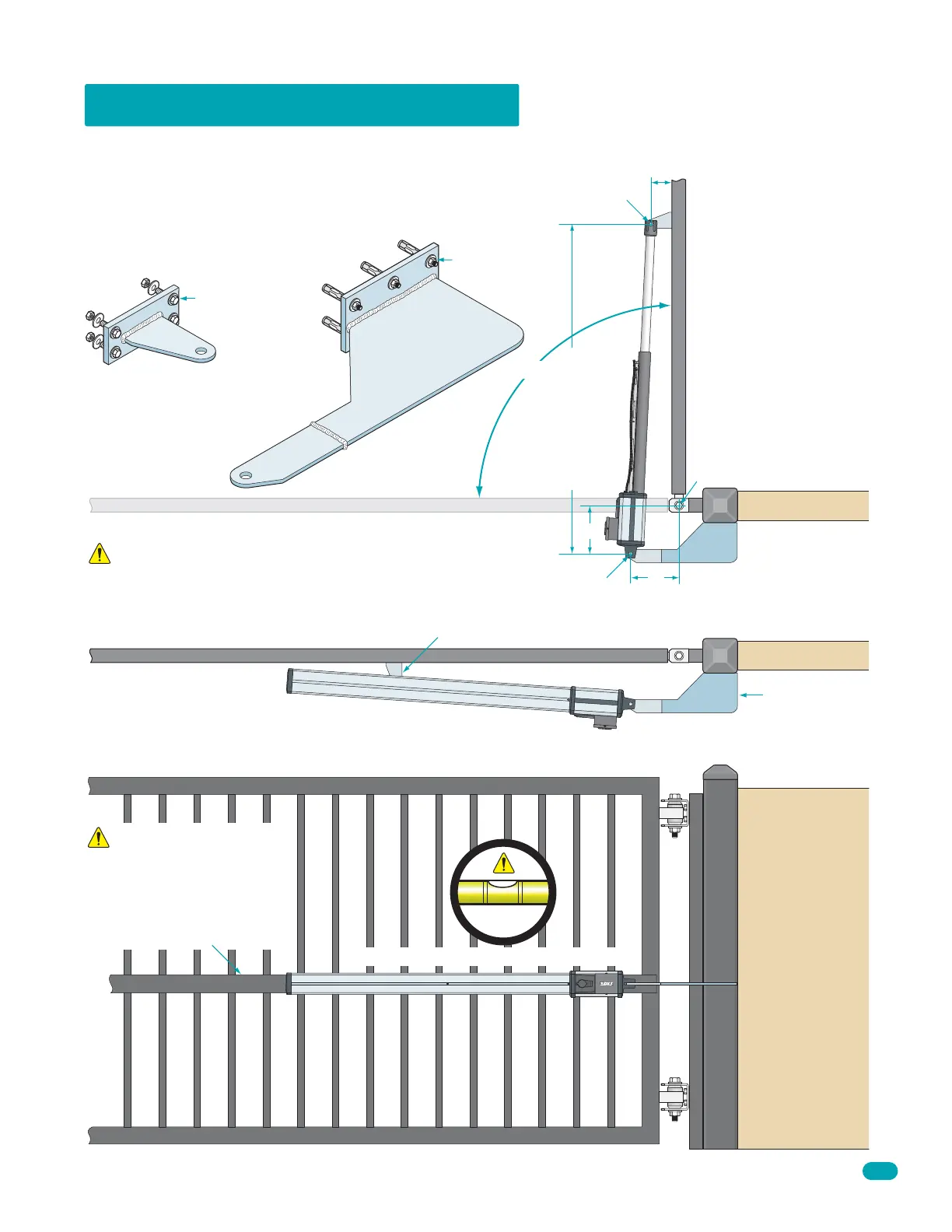

A support bar must span
the entire length of the
gate to support the gate
pickets. The pickets will
bend if not supported.
Support Bar
Gate in Closed Position
Actuator arm and brackets MUST be level!
6002 “Opening to the Outside”
7”
Addition to rear
bracket must be
fabricated to
reach wall.
Gate Hinge Pivot Point
Front Bracket Pivot Point
Front Bracket
Rear Bracket Pivot Point
90°
7”
Do not install the actuator in fully
extended (Bottomed out) position.
This will damage the arm. See next
page to prevent this from happening.
46
3
/4” Open Position
Reinforced
Steel Plate
(Not Supplied)
Concrete
Sleeve
Anchors
(Not Supplied)
Bolts with
Lock Washers
(Not Supplied)
Reinforced
Steel Plate
(Not Supplied)
Rear Bracket
(Supplied)
Front Bracket
(Supplied)
3
1
/8”
Mechanically Attaching Brackets
to Surfaces
When mounting brackets with bolts
to the wall and/or gate, weld reinforcing steel plates to the
brackets. Completely weld around brackets. The brackets
must be perpendicular to the wall and/or gate and
horizontally level.
Fabricated
Reinforced
Steel
Plate
(Not Supplied)
To Next Page
