CONTROL BOXES SPECIFICATIONS
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any
persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is
copyrighted, all rights reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written
consent from DoorKing, Inc.
Class of Operation Models 6002, 6003 and 6400 - UL325 Class I
Type of Gate Residential Vehicular Swing Gates Only
Voltage / Phase 115 VAC 60 Hz Single Phase Input Power – 24 VDC Operating Power
Back-Up Power 24 VDC battery power during power outages.

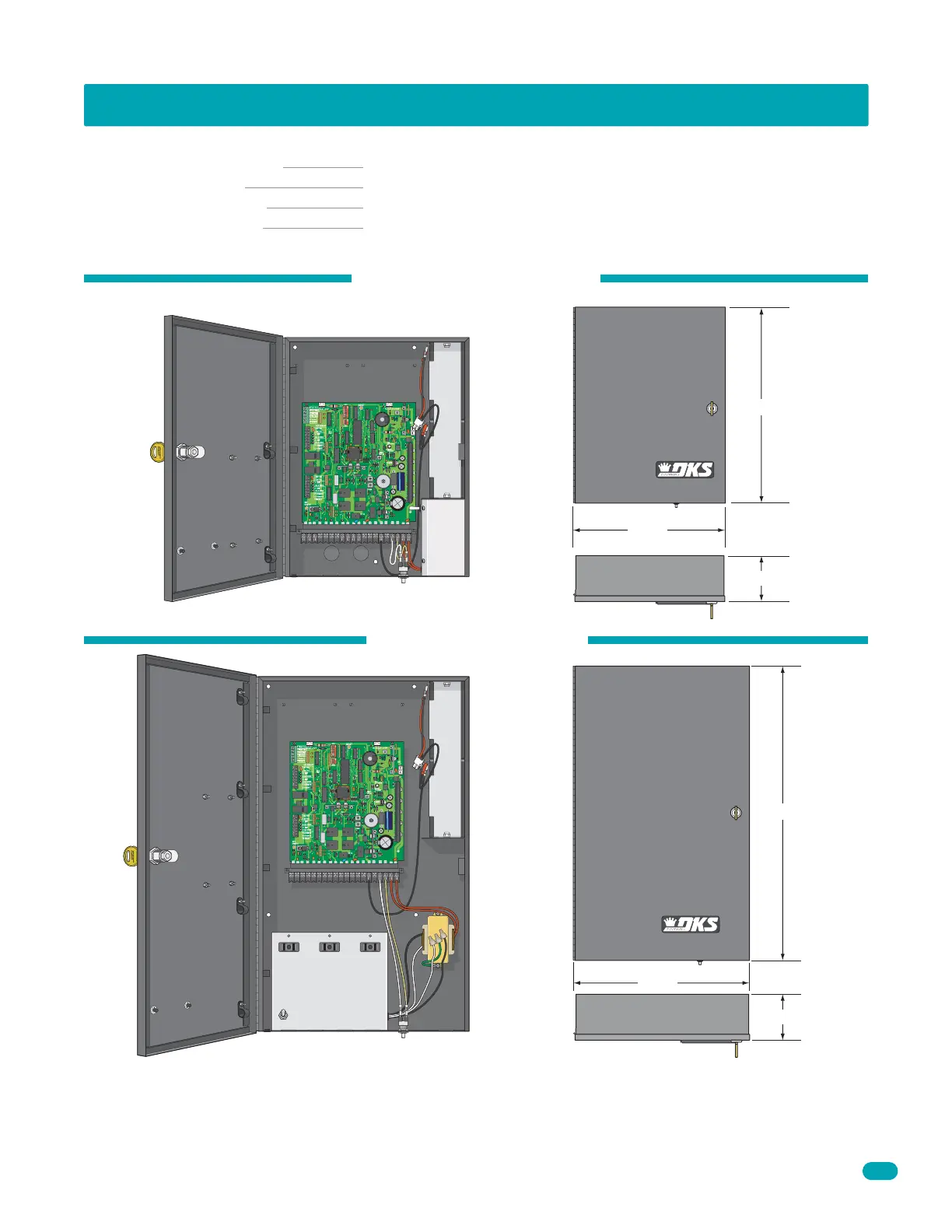

Standard Control Box
P/N 4302-111
Deluxe Control Box
P/N 4302-112
4.25”
4.25”
16.5”
12.5”
24.5”
14.5”
1 2 3 4 5 6 7 8 9 1011121314151617 181920
1
7
6
5
4
3
2
4302
1 2 3 4 5 6 7 8 9 101112131415 16171819 20
4302
115 VAC convenience outlets to
power auxiliary power transformers.
OFF
ON
