DKS Standard - Installation of 6003 Actuator Arm; 6003 Manual Key Release

6400-065-C-1-09
17

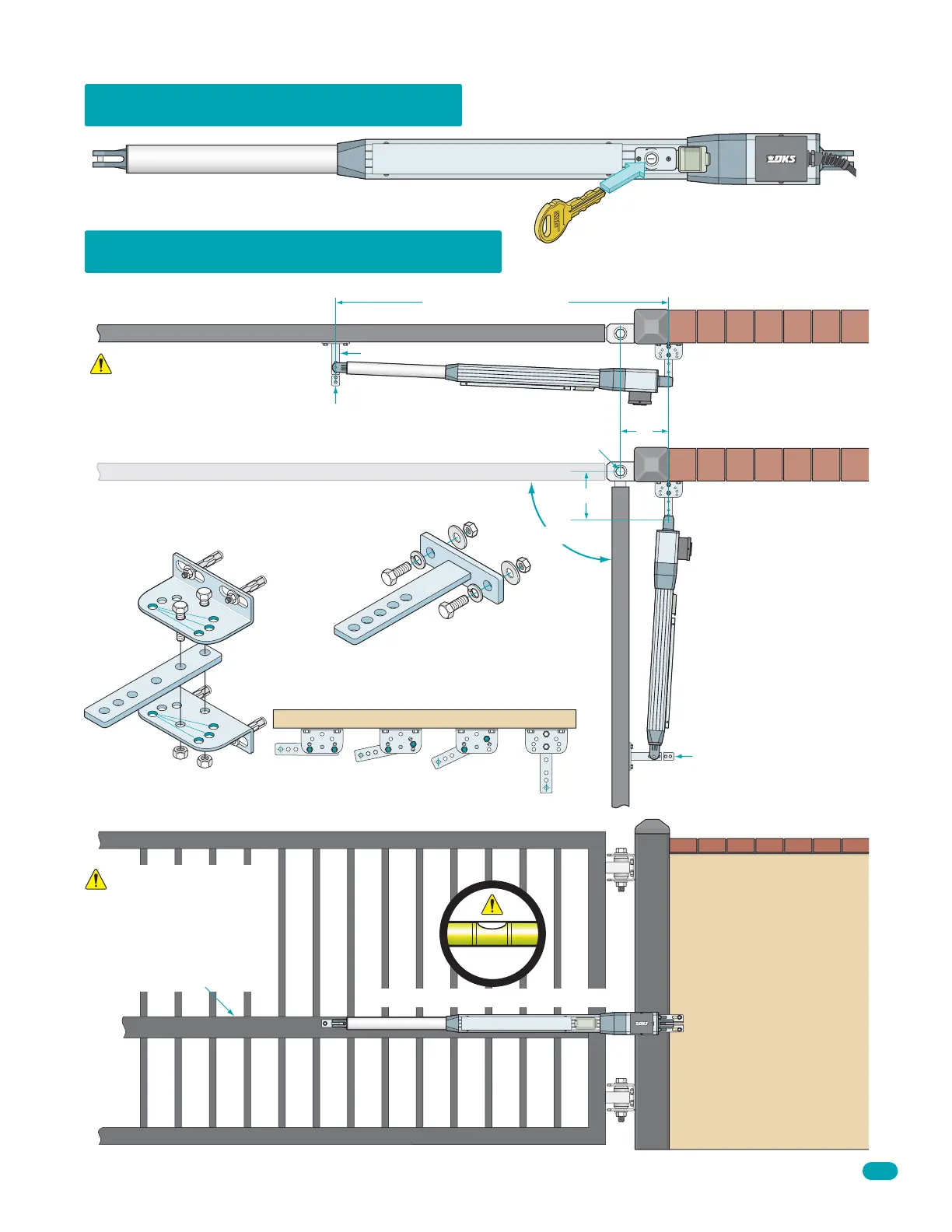

6003 “Opening to the Inside”
47.5” Closed Position
7”
7”
90°
Gate Hinge Pivot Point
Front Bracket Pivot Point
Front Bracket
Rear Bracket Pivot Point
Attaching Brackets
Closed Position
Open Position
Actuator arm and brackets MUST be level!
A support bar must span
the entire length of the
gate to support the gate
pickets. The pickets will
bend if not supported.
Support Bar
Gate in Closed Position
Do not install the actuator in
fully extended (Bottomed out)
position. This will damage the
arm. See page 19 to prevent
this from happening.
Lock Washers
(Not Supplied)
Front Bracket
Bolt to support bar.
The brackets must be securely mounted and level.
Angles will reduce operators
distance from wall. See next page.
Angled Configurations
Wall
2”
2
1
/
2”
5
1
/
2”
3”
Straight
Rear Bracket Options
Assemble straight out (shown)
or 3 different angles.
Sleeve Anchors
(Not Supplied)
OPEN
CLOSE
6003 Manual Key Release
Manually key release the actuator. Powered shaft can be pulled out.
Powered Shaft
Cut Off
Excess
Bracket
Cut Off
Excess
Bracket
