Class of Operation Model 6002 - UL325 Class I
Type of Gate Residentail Vehicular Swing Gates Only
Motor RPM 1400
Maximum Thrust 300 daN
Voltage / Phase 115 VAC Single Phase Input Power – 24 VDC Operating Power
Current 3 Amps
Max Gate Weight 500 Lbs.
Max Gate Length 14 Feet
Useful Rod Stroke 14 inches
Cycles Per Hour 10 Per Hour with AC connected
Speed 90° in approximately 15 seconds
Entrapment Protection Primary - Inherent entrapment sensing system (Type A)
Secondary - Provision for connection of a non-contact sensor (Type B1)
6002 and 6003 SPECIFICATIONS
49.25”
5.75”
Class of Operation Model 6003 - UL325 Class I
Type of Gate Residential Vehicular Swing Gates Only
Motor RPM 1400
Maximum Thrust 300 daN
Voltage / Phase 115 VAC Single Phase Input Power – 24 VDC Operating Power
Current 3 Amps
Max Gate Weight 300 Lbs.
Max Gate Length 10 Feet.
Useful Rod Stroke 14 inches
Cycles Per Hour 10 Per Hour with AC connected
Speed 90° in approximately 15 seconds
Entrapment Protection Primary - Inherent entrapment sensing system (Type A)
Secondary - Provision for connection of a non-contact sensor (Type B1)
3”
3.5”
6002

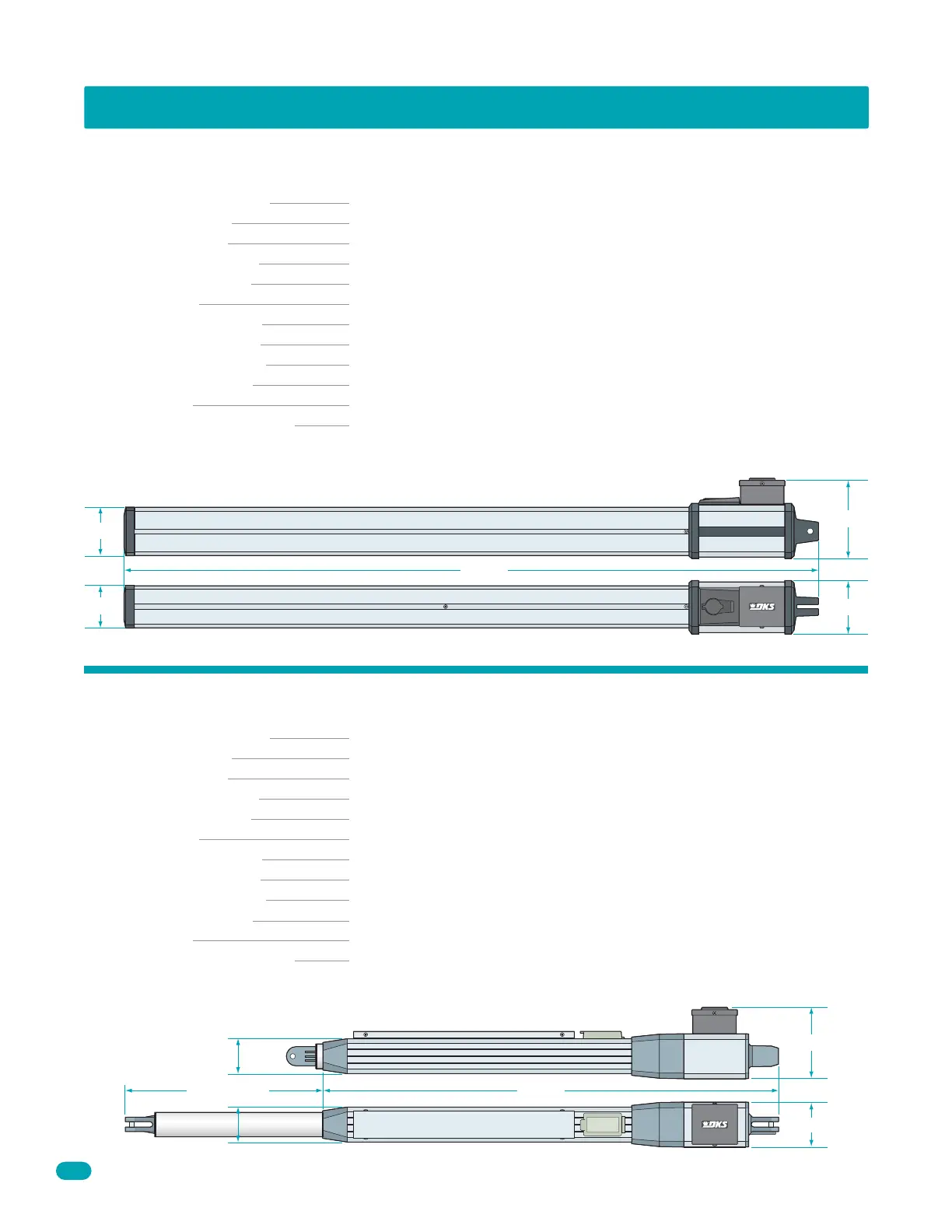

Drawings not to scale
3.75”
32.5”
Rod Extends 14”
5”
3.25”
2.5”
2.5”
6003
