6400-065-C-1-09
20
The gate weight will be on the foundation box of the 6400. It is recommended that the concrete is reinforced around the
foundation box to handle the weight of the gate (300 lbs max.). It is preferred that a heavy gate be supported by two hinges
instead of the foundation box (See next page).
The foundation box MUST have a drain pipe installed with the correct slope for proper drainage. Improper drainage of the
foundation box will result in stagnant water that will eventually lead to operator failure.

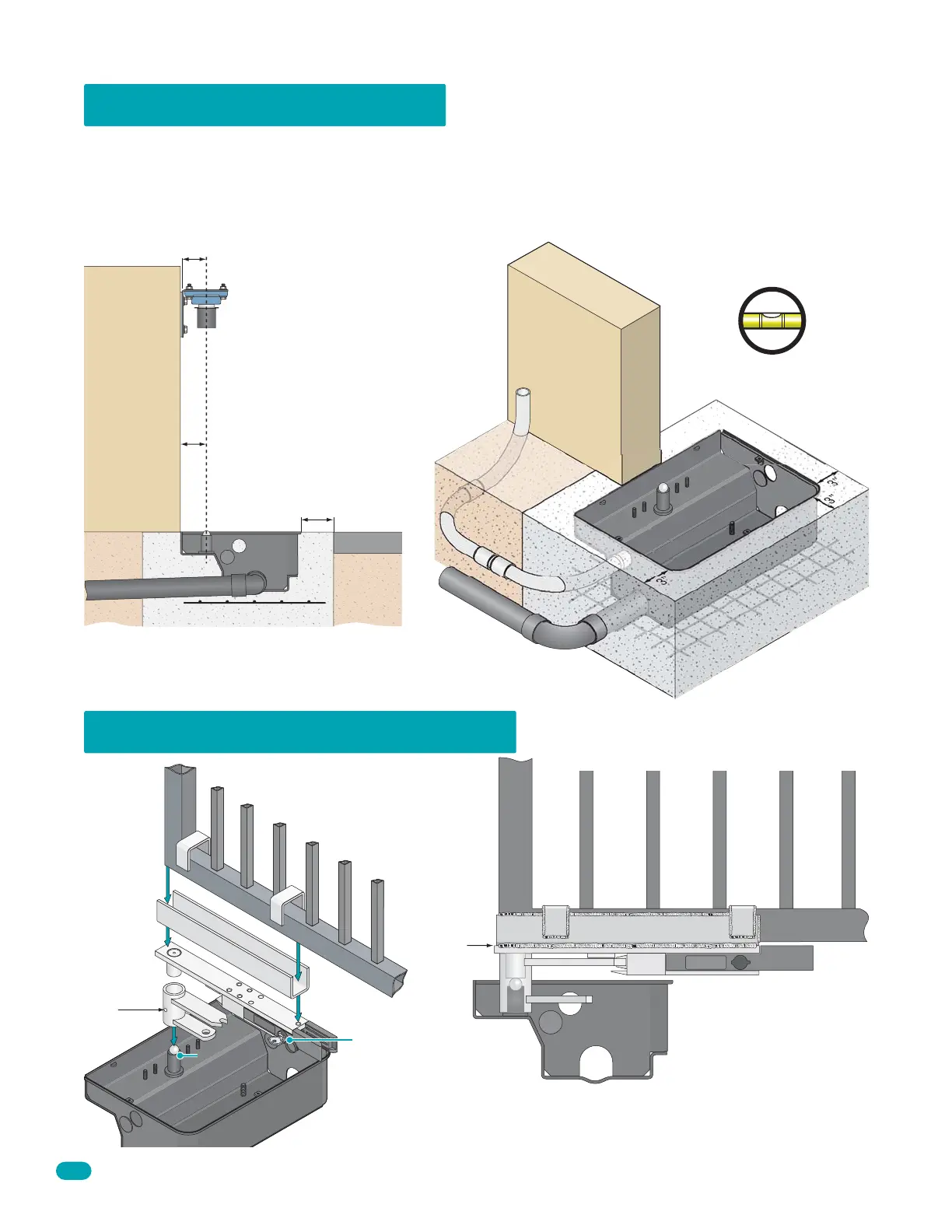

6400 Single Hinge Setup
Single Hinge Gate Connection
Flange Hinge
P/N 1200-009
2 1/2” Hinge pivot point.
Wall
or
Post
2 5/8” operator pivot point.
Apply Grease
Grease
Filler
Hole
Sample Hinge
Plumb
3” around
foundation box.
Driveway
Embedded Wire Mesh
1 1/2” pipe slop
ed to drain.
Foundation
Box
The depth of the concrete is determined by
specific installation requirements, soil conditions
and local building codes.
After the foundation box has been mounted
and the gate has been connected to it, proceed
to page 22 to install components in the box.
Foundation box MUST be level
and flush with driveway surface.
Important: Hinge pivot
point MUST be plumb with
foundation box pivot point.
Important: Remove all parts
from inside of foundation box
before mounting into concrete.
Foundation Box
3
”
3”
3”
Run 3/4” condui
t
with sweeps from
foundation box to
where control box
will be mounted.
Slope 1 1/2” drainage pipe away
from foundation box to nearest
drain (Not supplied).
Fabrica
ted U-Channel (No
t Supp
lied)
F
ab
r
icated
M
etal Brac
kets
(Not
S
uppl
ied)
Weld everything to gate.
M
anual
R
eleas
e
Weld both
sides of
U-channel
to manual
release.
Manual
Release
Protect the manual release
from welding sparks during
welding.
Manual
Release
Unlock and pull release
handle to manually
operate the gate.
To Next Page
