DKS Standard - Section 3 - Wiring; Wiring Operator ( S )

6400-065-C-1-09
24

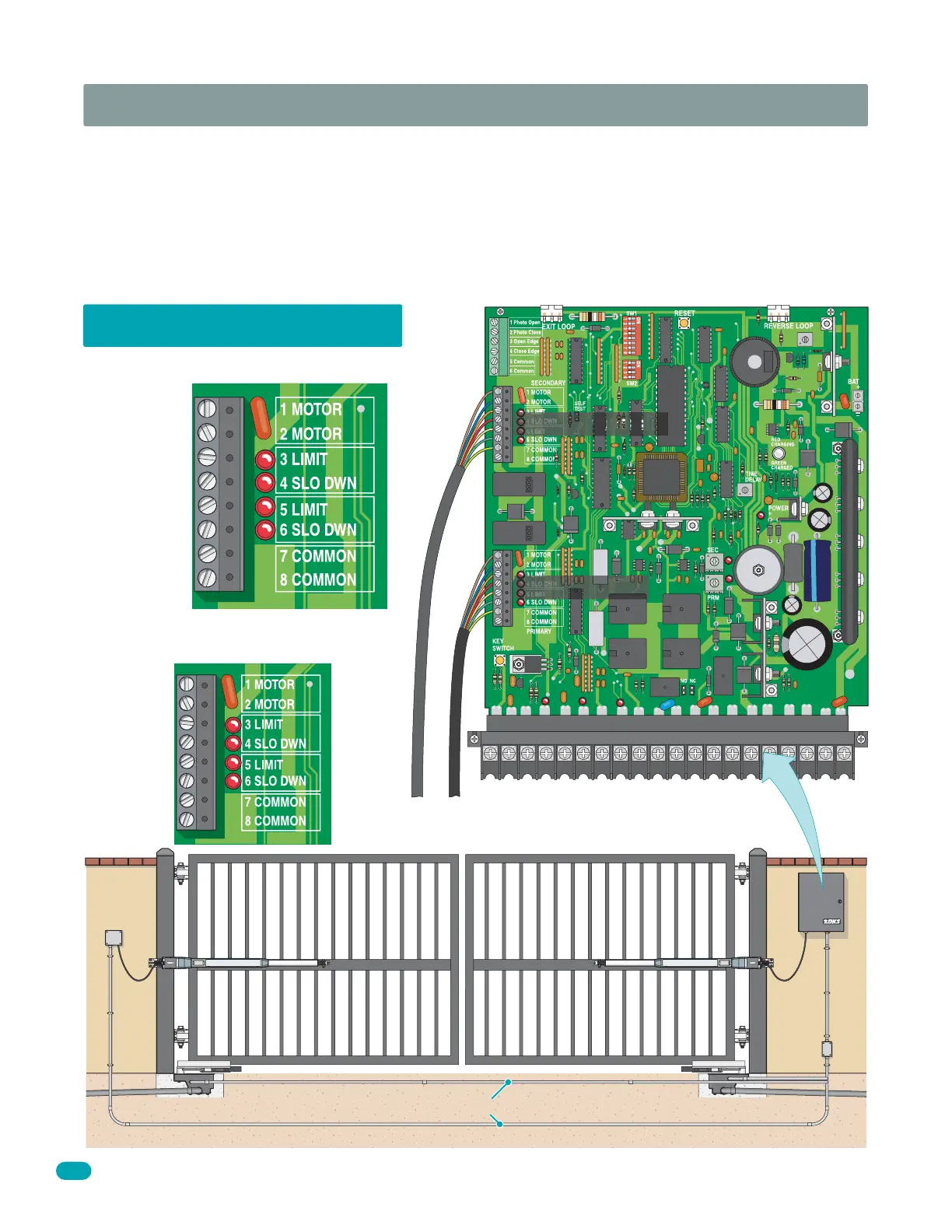

3.1 Wiring Operator(s)
SECTION 3 - WIRING
Before attempting to connect any wiring to the control box, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the control box as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the control box (both high and low voltage) complies with
local code requirements.
GATE OPERATOR(S) MUST BE PROPERLY GROUNDED!!
Motor wires MUST be reversed for
the 6400 Secondary operator ONLY.
Primary
Operator
Secondary
Operator
1
7
6
5
4
3
2
12345
6
7
89
10 11 12
13
14 15
16 17 18 19
20
Secondary Operator Cable (Interconnection cable)
Primary or Secondary Wiring
6400 Secondary Wiring ONLY!
Primary Operator Cable
1
7
8
6
5
4
3
2
DoorKing interconnection cable (P/N 2600-75x) in underground conduit (Not supplied)
1
7
6
5
4
3
2
Brown wire
Blue wire
Orange wire
Red wire
Yellow wire
Green wire
Green/Yellow wire
Not Used
1
7
8
6
5
4
3
2
Blue wire
Brown wire
Orange wire
Red wire
Yellow wire
Green wire
Green/Yellow wire
Not Used
Primary Operator
Secondary Operator
4302
