6400-065-C-1-09
29

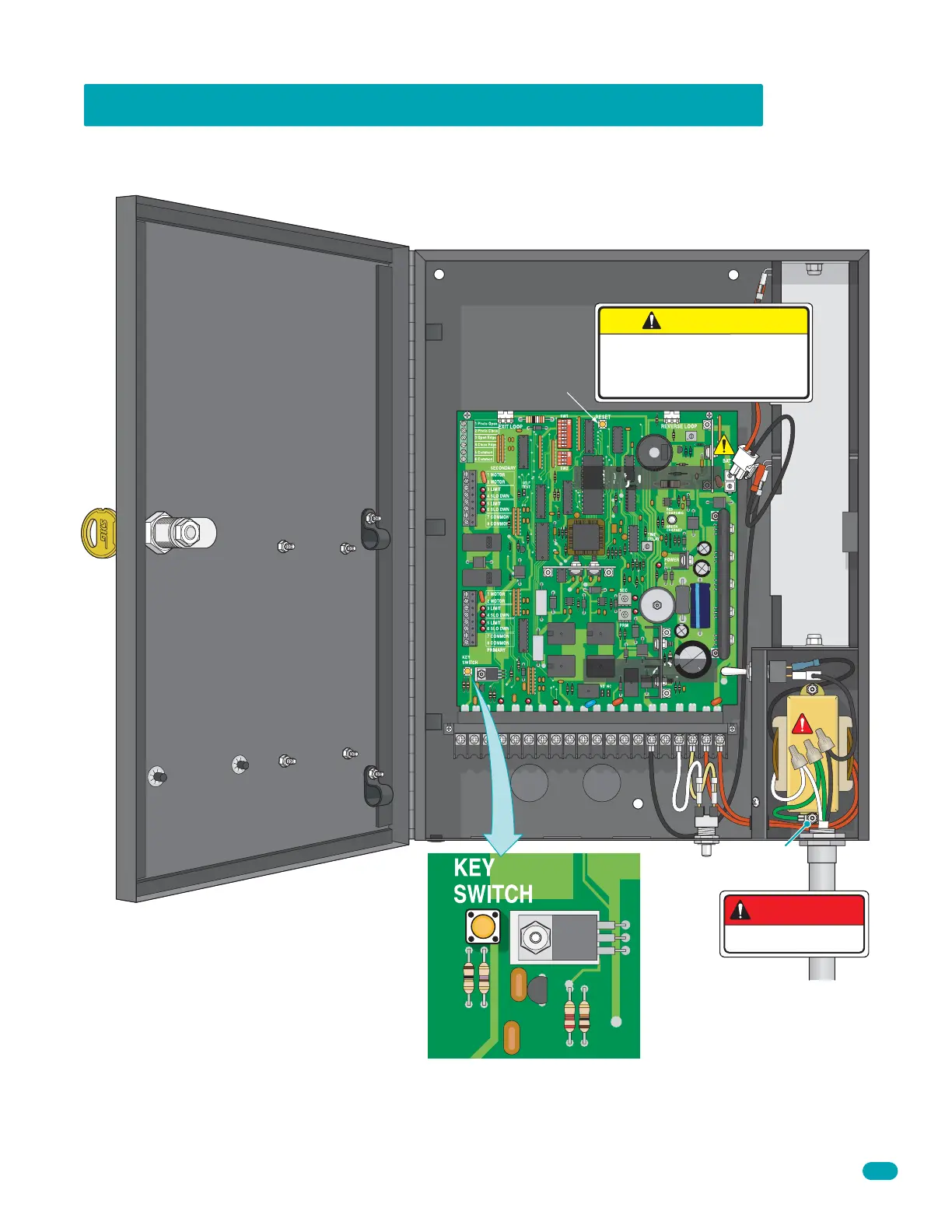

3.6 High Voltage Wiring and Battery Connection
Connect 115 VAC input
power wires (black and
white) to black (Hot) and
white (Neutral) transformer
wires. Connect input green
wire to chassis ground.
Important Power Note: To turn-off ALL power to
the operator, the AC power switch must be turned
off and the battery plug must be disconnected
from the circuit board.
After power has been
connected, activate the
operator by pressing the
key switch button.
12345
6
7
89
10 11 12
13
14 15
16 17 18 19
20
RED 24V RED
BLK 115V WHT
Chassis
Ground
To Cycle Operator:
Alarm
Reset
Button
Reset Button
It is recommended that a surge suppressor be installed on the high voltage power lines.
DANGER
HIGH VOLTAGE!
CAUTION
Do not connect the battery to
the circuit board until power
is needed to test the operator.
1
7
6
5
4
3
2
CONTROL BOX MUST BE PROPERLY GROUNDED!!
4302
12 Volt 3 Amp/Hr Battery12 Volt 3 Amp/Hr Battery
AC Power Switch
Battery Connection
To Next Page
