DOM Roq® Long Plate with Screw Connection Through Inside Plate
33
DOM Roq® Smart Lock

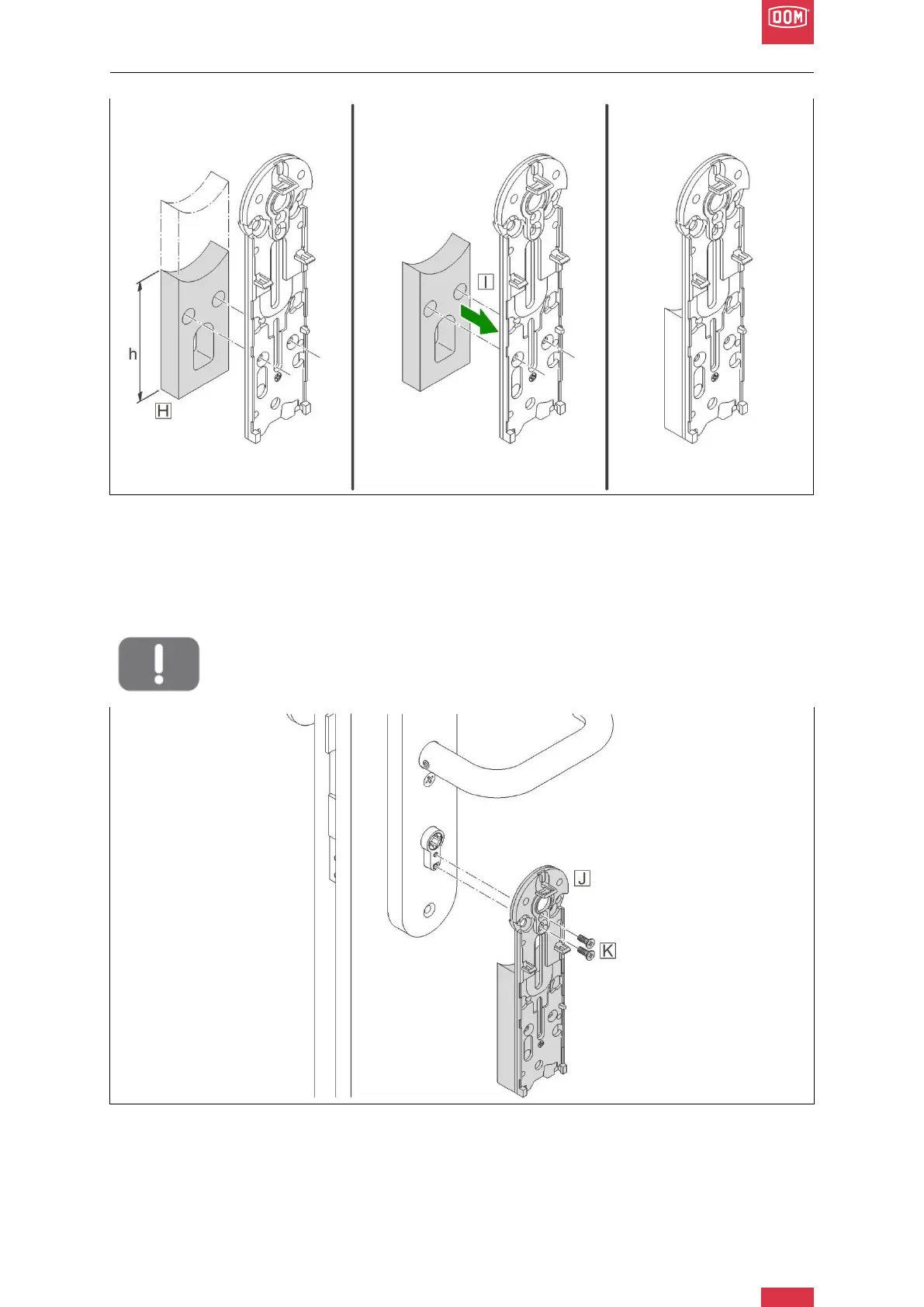

DOM Roq® Fig. 26: Long Plate with Screw Connection Through Inside Plate
15. Cut the foam piece according to dimension h and the shape (pay attention to the
printed pattern lines) of the trim. (H)
16. Remove the protective film from the foam part and stick the foam part accurately onto
the base plate. (I)
Attention!
It may not be possible to remove the foam from the base plate afterwards with-
out damaging it!
DOM Roq® Fig. 27: Long Plate with Screw Connection Through Inside Plate
17. Place the base plate incl. foam part on the cylinder. (J)
