DOM Roq® Long Plate with Screw Connection Through Inside Plate
34
DOM Roq® Smart Lock
Attention! Damage to the door leaf due to gluing
Gluing the foam part directly onto the door leaf can / will damage the door leaf.
This may be visible after rebuilding to a normal cylinder lock! Since there is a
fixing screw (L), there is no need to glue it on.
18. Fasten the base plate on the cylinder with two M4 screws. (K)
Attention!
For a cylinder protrusion of 1 to max. 4 mm (from the trim), use the screws M4
x 12 mm, for a cylinder protrusion of less than
1 mm (out of the trim), use the screws M4 x 16 mm.
Tighten these screws only until there is no more slack (screws are provided with
a screw locking adhesive).
The screws may only be tightened until the base plate is parallel to the door
leaf without pulling the cylinder out in an inward direction.

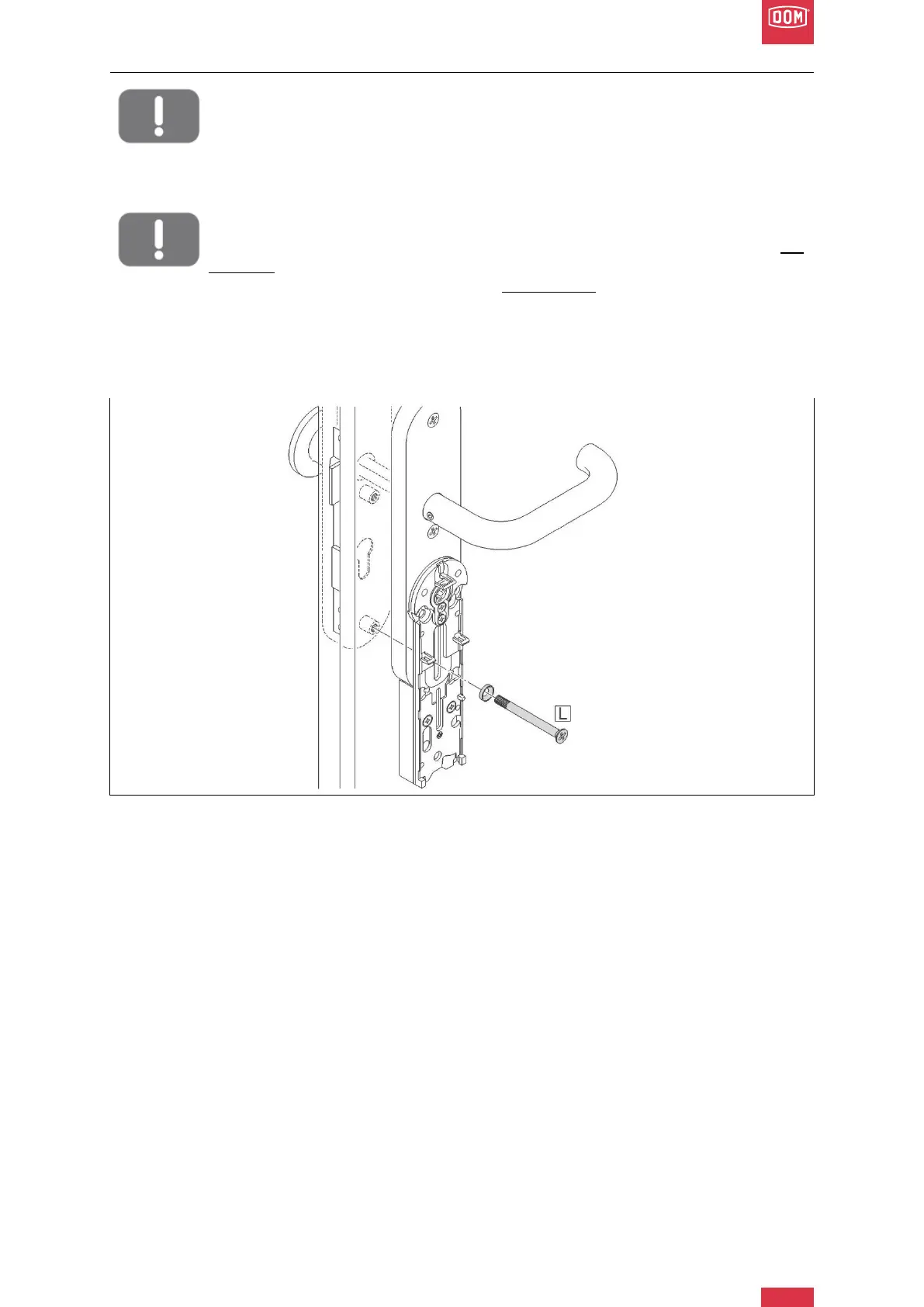

DOM Roq® Fig. 28: Long Plate with Screw Connection Through Inside Plate
19. Fix the base plate to the outside fitting with DOM Roq® connecting countersunk
screw M5 / M6 and corresponding matching countersunk washer. (L)
