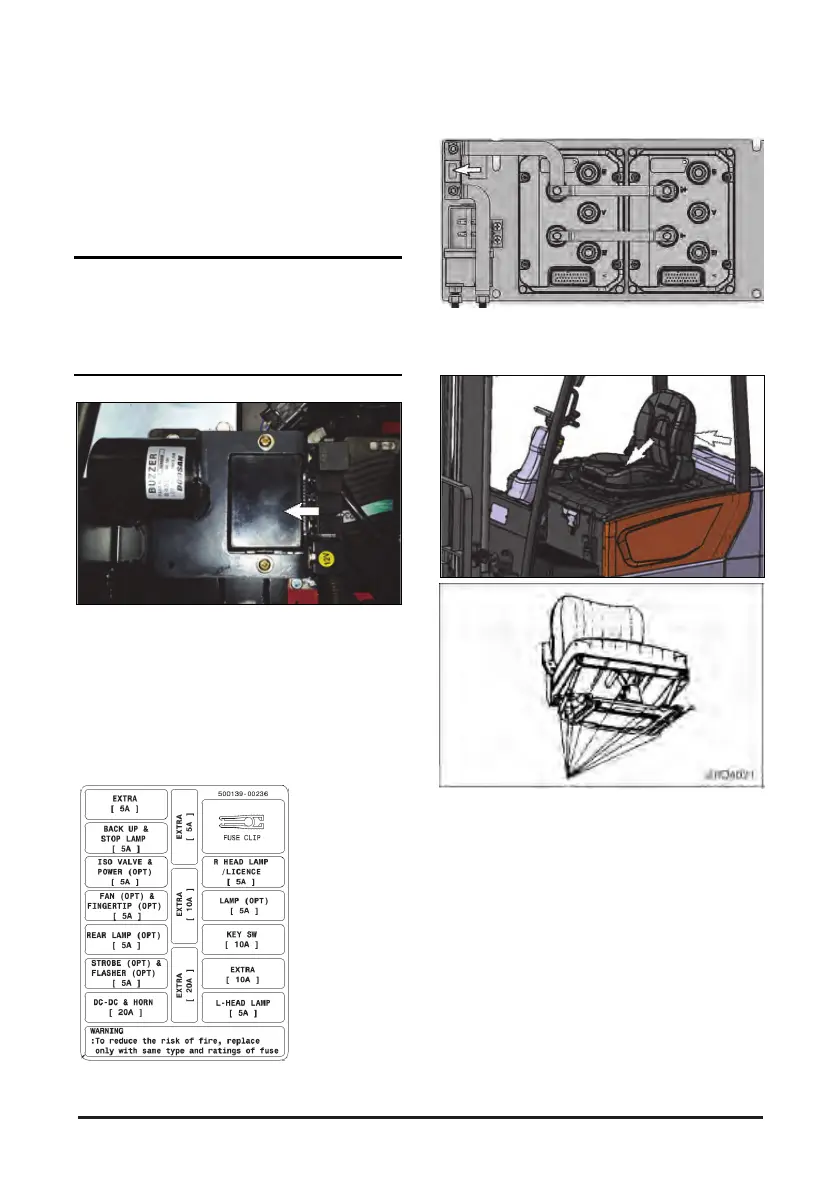

Fuses – Replace
The fuses are located in the control panel and fuse
box at the rear of the lift truck.
They protect the electrical system from damage
caused by overloaded circuits. Change a fuse if the
element separates. If the element of a new fuse
separates, have the circuit checked and repaired.
NOTICE
Replace fuses with the same type and size only.
Otherwise, electrical damage can result.
If it is necessary to replace fuses frequently, an
electrical problem may exist. Contact your
DOOSAN Lift Truck dealer.
Backup & Stop Lamp – 5 A
ISO Relay & POWER – 5 A
FAN & FINGERTIP – 5 A
Rear Lamp – 5 A
Strobe & Flasher – 5 A
DC-DC & Horn – 20 A
R Head Lamp – 5A
Lamp (OPT) – 5 A
Key Switch – 10 A
L Head Lamp – 5A
Main Fuse - 500 amps
Main fuse – 80V 500 A
Seat - Lubricate
Check the operation of the seat adjusters. Make
sure that the seat slides freely on its track. Lightly
oil the seat slider tracks.
