Doosan B25X-7 PLUS - Drive Axle Gear Boxes; Wheel Bolts - Check for Tightness; Drive Wheels

Maintenance Section
126

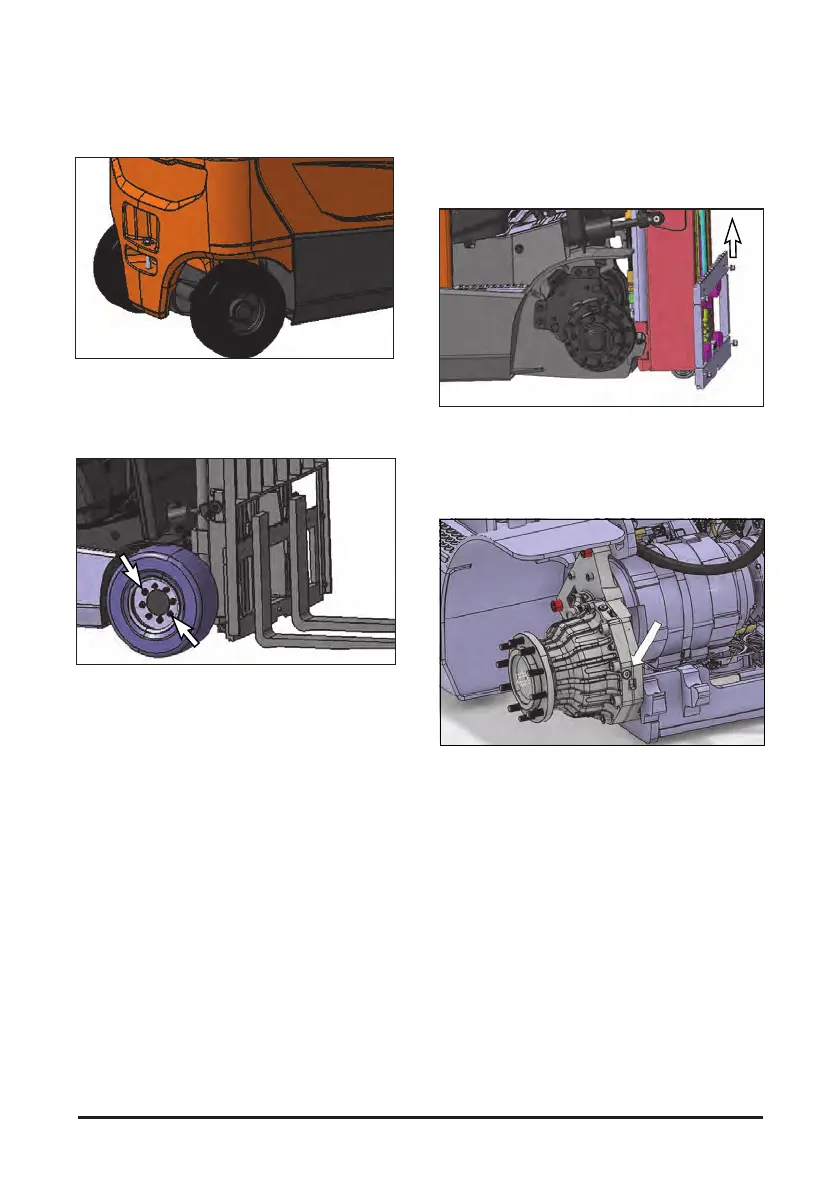

Wheel Bolts - Check for Tightness
Steer Wheels
Typical example
1. Inspect tightness of wheel nuts in a sequence
opposite each other 140 N∙m (105 lb·ft).
Drive Wheels
Typical example
2. Inspect tightness of wheel nuts in a sequence
opposite each other to 200±10 N∙m (148 lb∙ft).
Drive Axle Gear Boxes
NOTE: If there is a leak from drive axle, the oil level
should be measured as follows.
Measure Lubricant Level
1. Park the lift truck on a level surface. Raise the
carriage high enough to gain access to the
housing level/fill plugs.
2. Use blocking to secure the carriage in this
position.
3. Remove the housing level checking plugs.
Maintain lubricant level to the bottom of the plug
opening. Install the level checking plugs.
4. Remove blocking. Lower the carriage.
