Maintenance Section
134
First 150 Service Hours or 2 Weeks
You must read and understand the warnings and instructions contained in the Safety section of this manual,
before performing any operation or maintenance procedures.

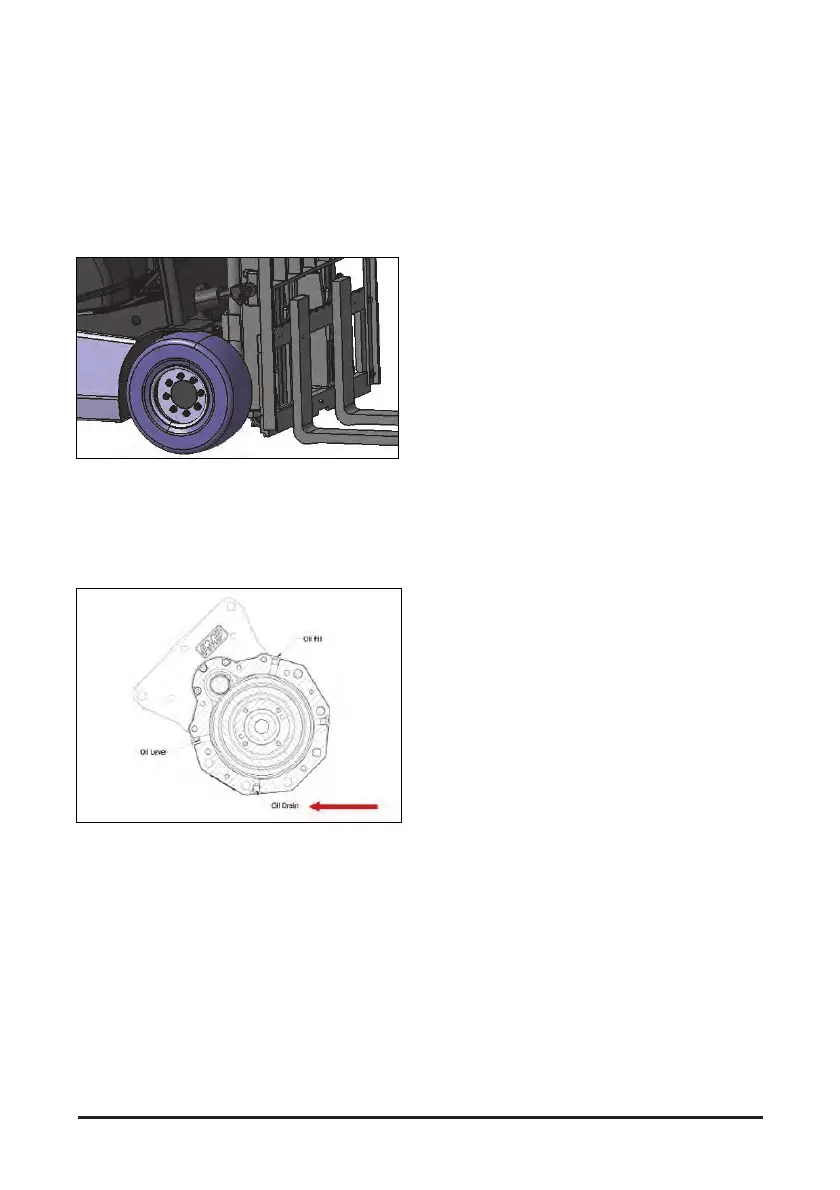

Drive Axle Oil - Change
After the first 150 hour of operation, subsequently
after every 2000 hours or yearly.
Park the lift truck on a level ground. Check that the
parking brake lamp is on, and shift the control lever
to the neutral position.
1. Raise the mast and block in place.
2. Turn the key switch to OFF.
3. Remove oil: Remove the drain plug, in order to
facilitate oil draining it is recommended to
remove the oil level plug, allow all the oil to flow
out to gearbox
4. Refill oil: unscrew the fill plug and the level plug,
check that the drain plugs are tightened, fill the
gearbox with the following volumes of oil.
5. Fill the drive axle housing with oil filling plug
hole, the accurate amount of oil is defined by
the opening of level checking plug.
6. Maintain the oil level.
7. Plug: put the plugs with washers back in place,
run the unit and after few minutes check the oil
level, top off with oil if necessary, replace the
plugs with washers.
8. Raise the mast and remove the blocking.
