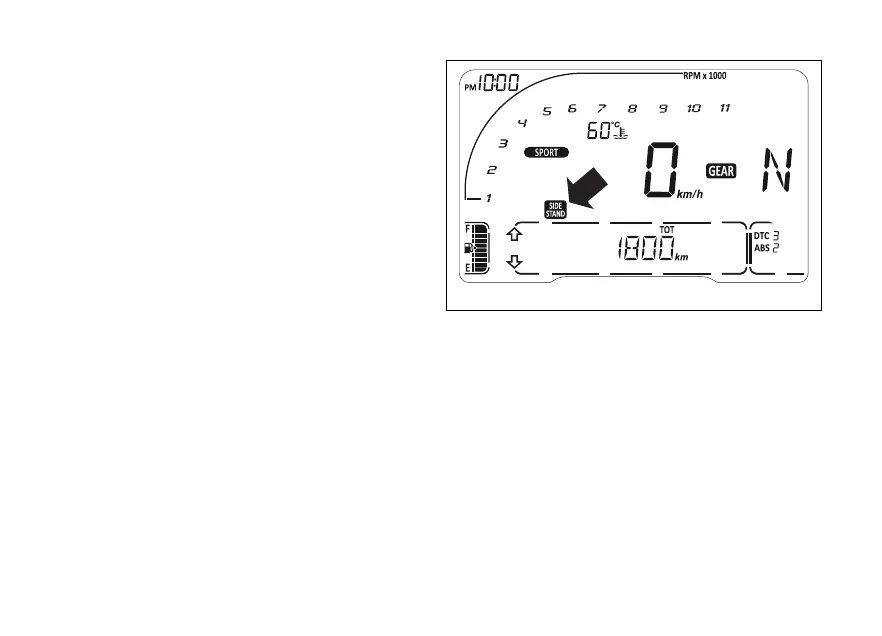

Side stand warning
The instrument panel receives information on side
stand status and if side stand is down/open, the icon
"SIDE STAND" is displayed.
In case of side stand sensor fault, the instrument
panel will display the stand down/up indication with
MIL light (9, Fig 9) on.
If instrument panel does not receive side stand
status, stand down/open “SIDE STAND” indication
will flash to indicate an undefined status.
Fig 121
