Engine rpm indication (RPM)
This function allows displaying engine rpm.
Instrument panel receives rpm value and displays it.
The information is displayed by the bargraph filling
from the to the right according to the engine
rpm and with the negative display (switching OFF of
the digit and switching on of its rectangle) of the
numerical digit of the relevant miles.
When the threshold before the rpm limiter is
reached, the corresponding warning (lights 14, Fig 9)
will turn on.

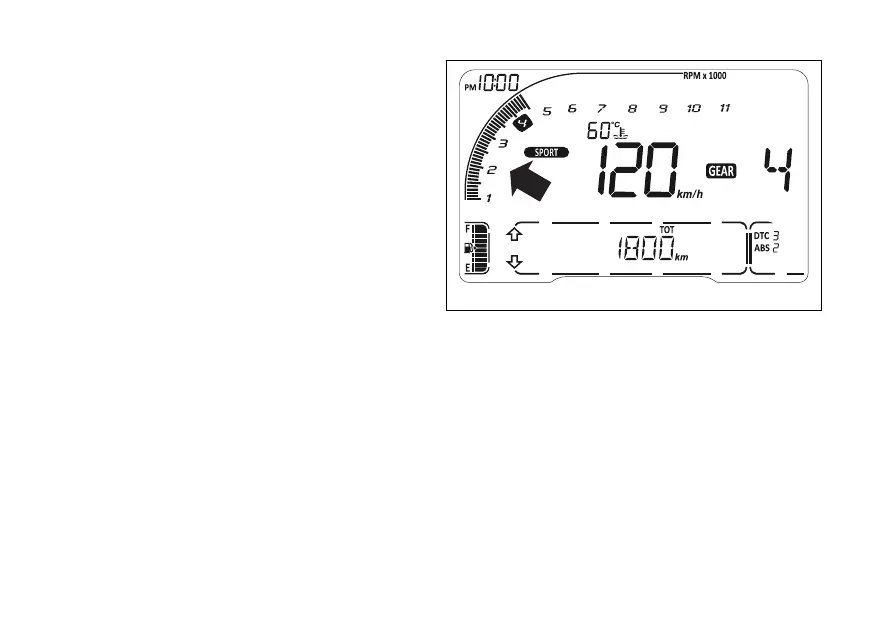

Fig 16
