Gear
The instrument panel receives information about
the gear engaged and displays the corresponding
value.
If a gear is engaged, the displayed value may range
from 1 to 6, while if in neutral N is displayed and the
Neutral warning light (2, Fig 9) turns on.
C and Neutral warning light (2, Fig 9) flash on
the instrument panel when rider must gear.
A dash “-” is displayed in these cases:
- dash “-” and Neutral (warning light 2, Fig 9)
flashing on the instrument panel if the gear
teach-in procedure has not been yet;
- dash “-” steady and Neutral
(warning light 2, Fig 9) flashing on the
instrument panel in case of gear sensor fault;
- dash “-” flashing if the instrument panel does
not receive the gear information.
Note
If the display shows “-” steady on and the
Neutral light is then the gearbox could be in a
mechanically unstable position; in such a case,
until the correct gear is indicated.

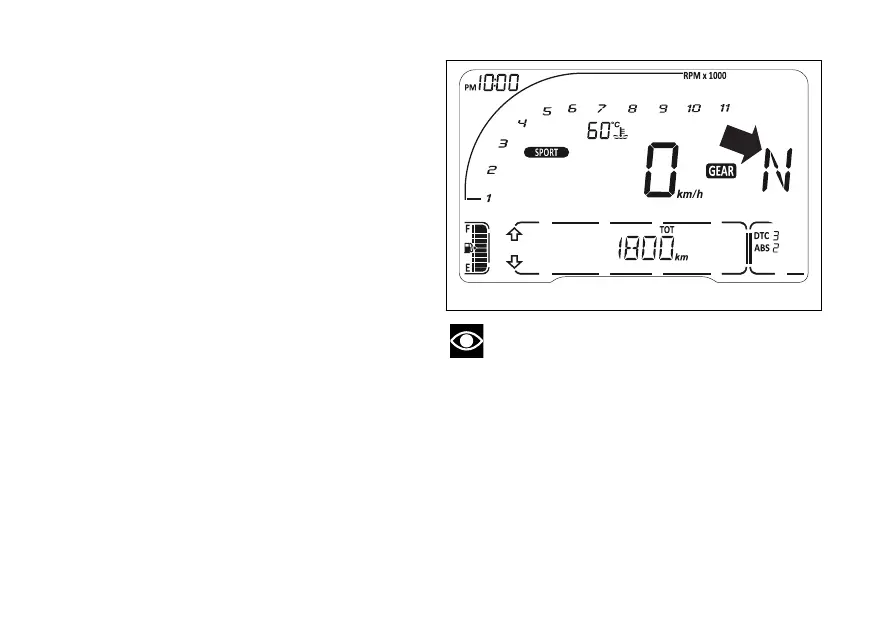

Fig 26
73
