Adjusting the position of the
gearchange pedal and rear brake
pedal
The position of the gear change pedal in relation to
the footrest can be adjusted to suit the requirements
of the rider.
Adjust the pedals as follows.

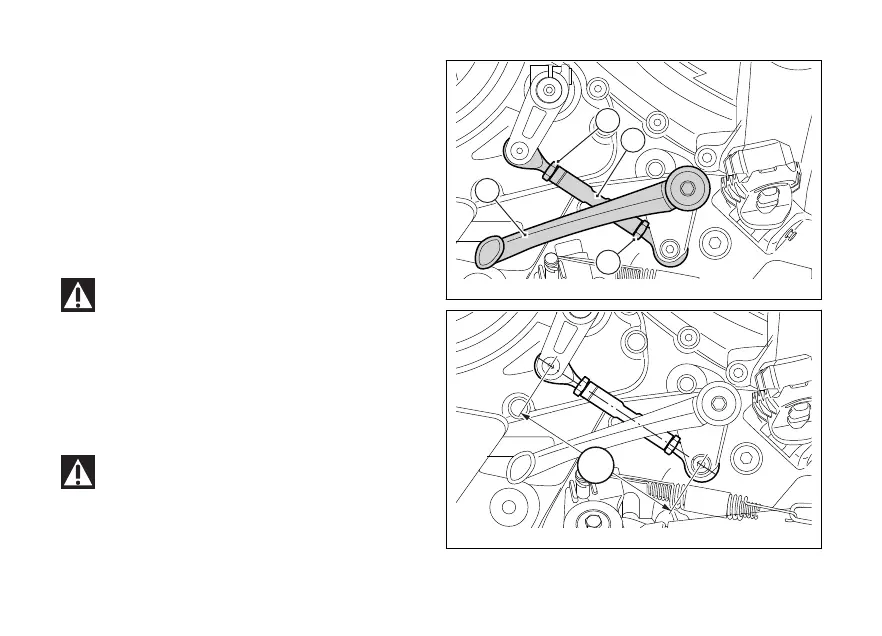

To adjust the position of gear change pedal (1), turn
lock nuts (2) and (3).
Nut (3) has a thread.
Use flat with an open wrench and turn rod (4)
clockwise and counter clockwise.
Then tighten lock nuts (2) and (3).
Check the distance between centres (A), which must
be: A= 101.5 mm (3.99 in).
If the measured value does not fall within the
indicated range, repeat the operations.
Fig 140
Fig 141
189
