Parameter
Upon key-on, the Instrument panel carries out a
check routine to test the warning lights and the
display:
warning lights will be turned on in a sequence, while
on display system progressively activates rpm bar
indicator and speed indication.

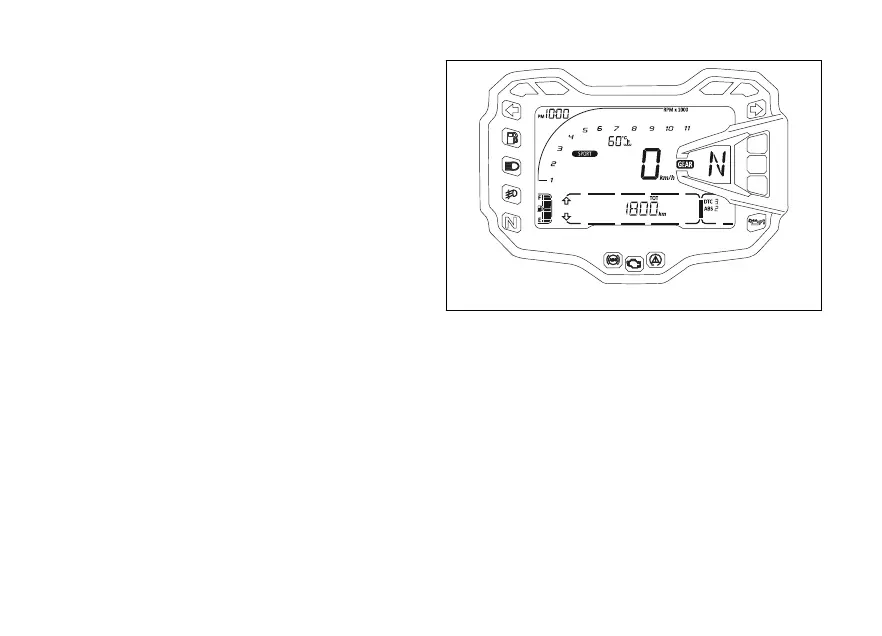

At the end of the check routine, the instrument
panel displays the main screen ("standard screen")
showing the available functions and turns on the
warning lights, if necessary.
During this first check stage, if the motorcycle speed
exceeds 5 km/h (3 mph) (actual speed), the
instrument panel will immediately stop warning light
and display check routine and display the main
screen.
Fig 12
43
