Ducati MULTISTRADA 950 - Fuse Box Locations and Key

The front fuse box (A), is located inside the  panel
and can be reached by removing the inspection
cover. To expose the fuses,  the box protective
cover. Mounting position and ampere capacity are
marked on box cover. Three spare fuses (7.5 A, 15 A
and 25 A) are positioned at the side.
The rear (B) and the ABS (C) fuse boxes are located
on rear subframe right-hand side, next to the ABS
control unit. To reach rear and ABS fuse boxes,
remove rider seat, see "Seat lock". To expose the
fuses, remove box protective cover. Mounting
position and ampere capacity are marked on box
cover. Three spare fuses (10 A, 15 A and 25 A) are
positioned at the side.

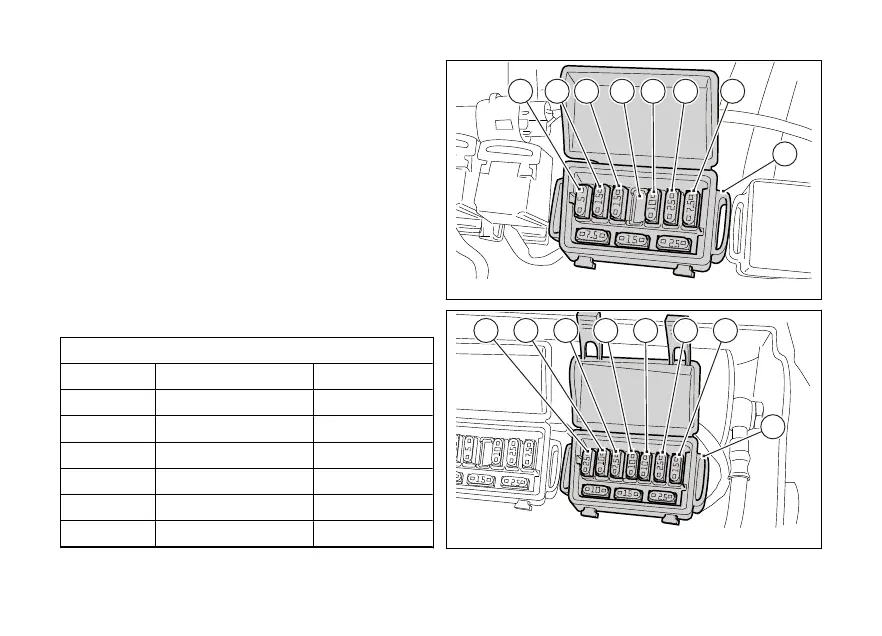

Front fuse box key (A)
Pos. El. item Rat.
1 KEY EMS / ABS / IMU 5 A
2 KEY DSB / BBS 15 A
3 KEY Lights 15 A
4 - -
5 KEY Accessories 10 A
6 Hands Free KEY 25 A
A
1 2 3 4 5 6 7
Fig 224
B
1 2 3 4 5 6 7
Fig 225
283
