Fuses
There are fuses that protect the electric
components, located inside the front fuse boxes,
and one on the electric solenoid There is a
spare fuse in every box.
Refer to the table below to identify the circuits
protected by the various fuses and their ratings.

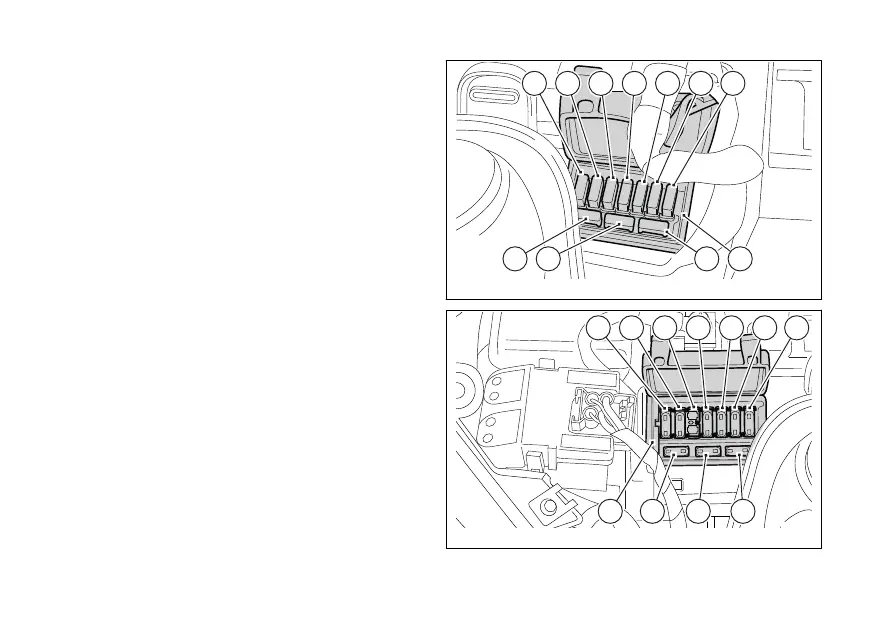

The front fuse box (A) and the front right one (B)
are located above the
To access the fuses, remove the side
fairing.
To expose the fuses, the box protective cover.
Mounting position and ampere capacity are marked
on box cover.
02
20
7.5
5
5
5
02
10
7.5
1 2 3 4
8 9 10 A
5 6 7
Fig 216
10
25
10
15
10
25
1
5
10
25
1 2 3 4
8 9 10B
5 6 7
Fig 217
288
