Grease V-Pan
The Grease V-Pan is located on the front of the
broiler under the Loader Tray.
Remove pan by sliding straight out from broiler.
Main
Grease Pan
Grease
V-Pan

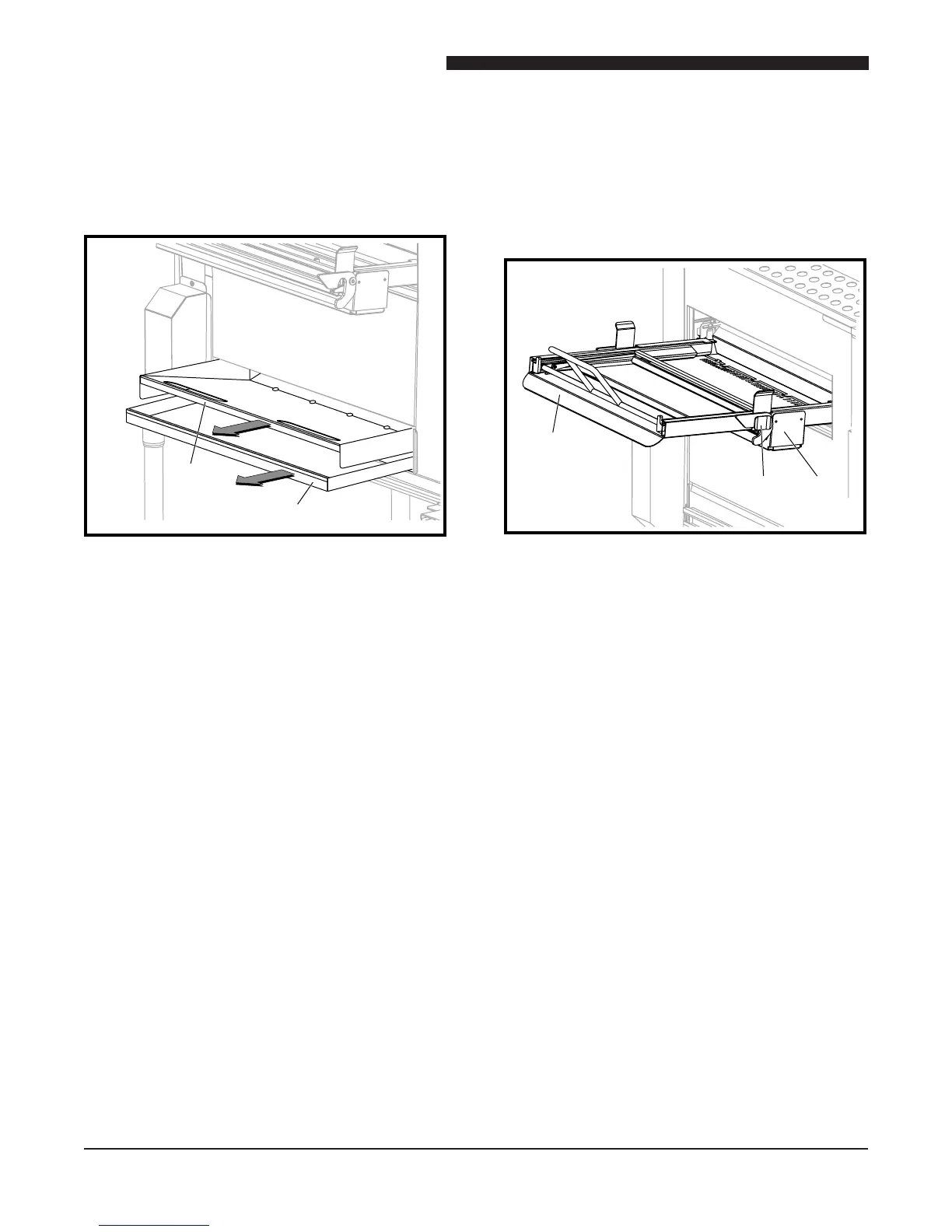

Grease V-Pan and Main Grease Pan
Loader Tray
The Loader Tray is located on the front of the
broiler and slides into the channels on the Loader
Brackets.
1. Remove Loader by sliding it out of the Loader
Tray.
2. Remove Loader Tray from the Loader Brackets
by pulling forward and disengaging ears on
Loader Tray from keepers on the Loader
Brackets.
3. Install Loader Tray by sliding it into bracket
and engaging ears with keepers.
Loader
Carriage
Loader
Bracket
Ear
Loader Tray
Conveyor Drive Motor Cover
The Conveyor Drive Motor Cover, located on the
lower front of the broiler on the discharge side,
covers the Drive Chain Motor.
1. Remove the Main Grease Pan and the Grease
V-Pan.
