Service Manual for Flexible Batch Broiler Units
CONVEYOR DRIVE MOTOR CAPACITOR
WARNING
DISCONNECT THE ELECTRICAL
POWER TO THE BROILER AND
FOLLOW LOCKOUT / TAGOUT
PROCEDURES.
1. Remove Electrical Access Panel. Refer to the
COVERS and PANELS section of the manual.
2. Disconnect wires to Conveyor Drive Motor
Capacitor.
3. Discharge the capacitor Apply a short across
the two capacitor terminals.
4. Remove screw securing capacitor to frame
and remove Conveyor Drive Motor Capacitor.
5. Reverse procedure to install a new Conveyor
Drive Motor Capacitor.

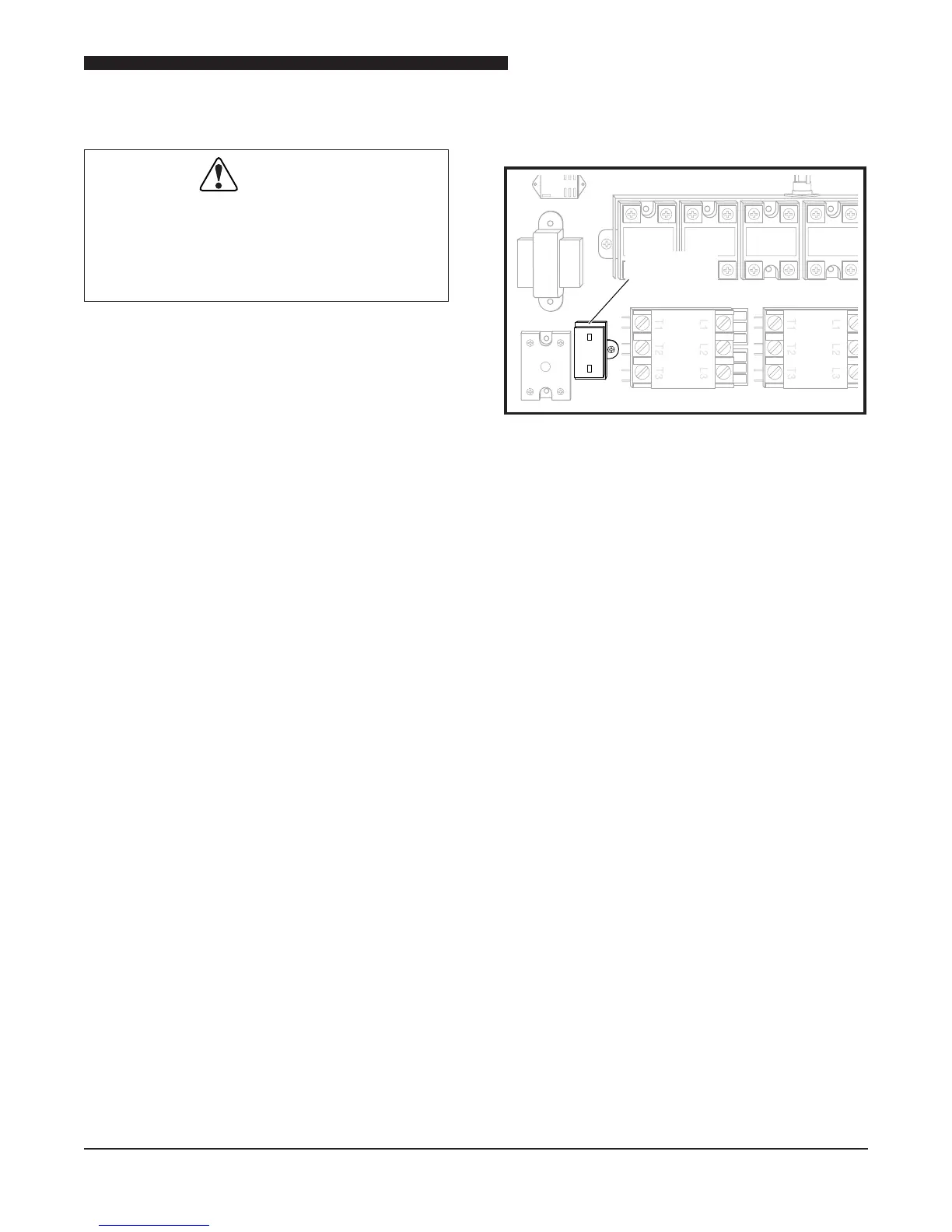

Conveyor
Drive Motor
Capacitor
Conveyor Drive Motor Capacitor
