Service Manual for Flexible Batch Broiler Units

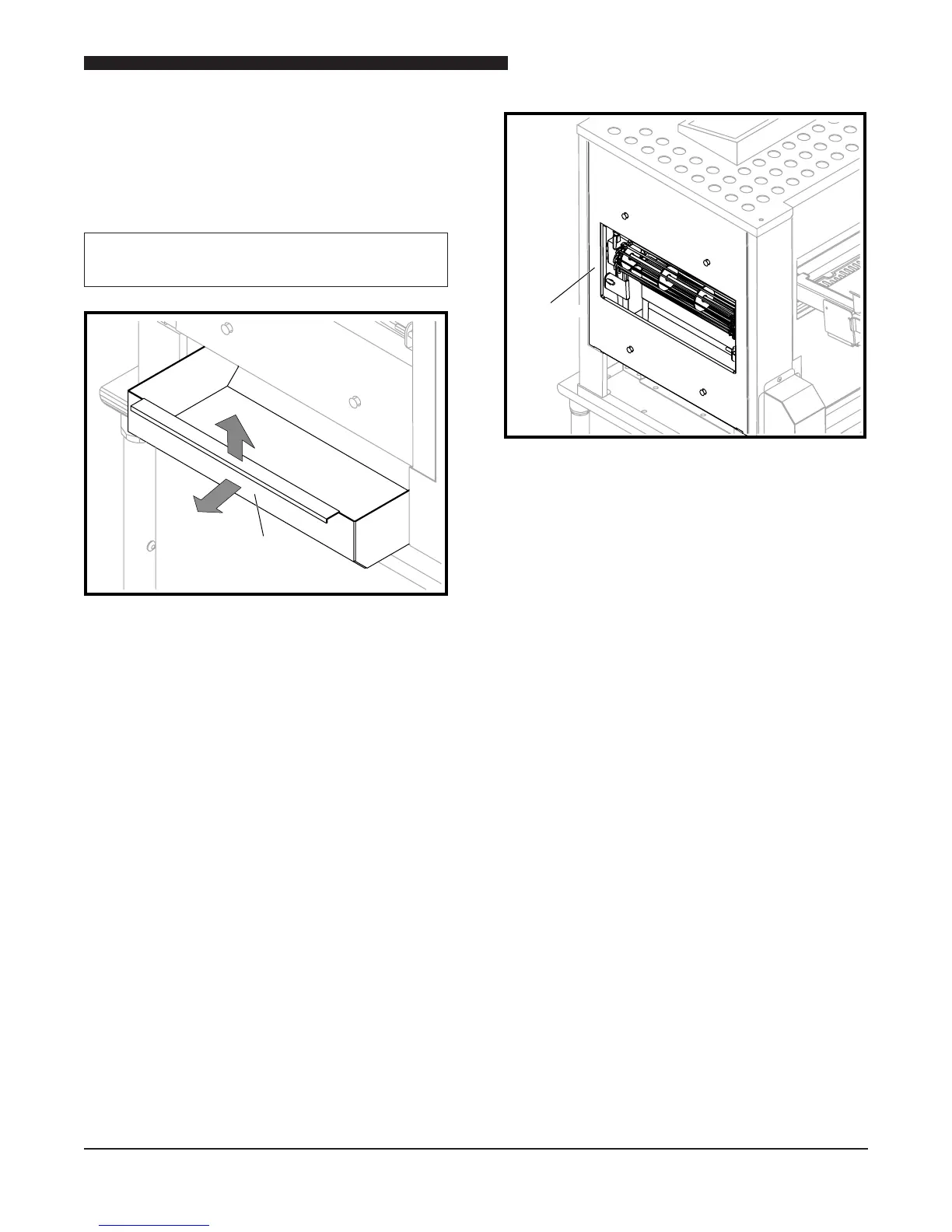

1. Tilt Discharge Grease Pan up to unhook and
pull forward to remove.
2. When installing the Discharge Grease Pan,
be sure to tilt up and push all the way back.
NOTE: Correct positioning will not allow pan
removal without upward tilt.
Discharge
Grease
Pan
1
2
Discharge Grease Pan
Discharge Access Panel
1. Remove the PHU Pan Shelf.
2. Remove Discharge Hood.
3. Remove Discharge Chute.
4. Remove Discharge Pan.
5. Remove Discharge Grease Pan.
6. Remove Discharge Access Panel by lifting it
up and out.
7. Reverse procedure to install Discharge Access
Panel.
Discharge
Side
Access
Panel
Discharge
Side
Access
Panel
Discharge Access Panel
Main Grease Pan
The Main Grease Pan is located on the front of
the broiler under the Grease V-Pan.
Remove the Main Grease Pan by sliding straight
out of broiler.
