Service Manual for Flexible Batch Broiler Units
18

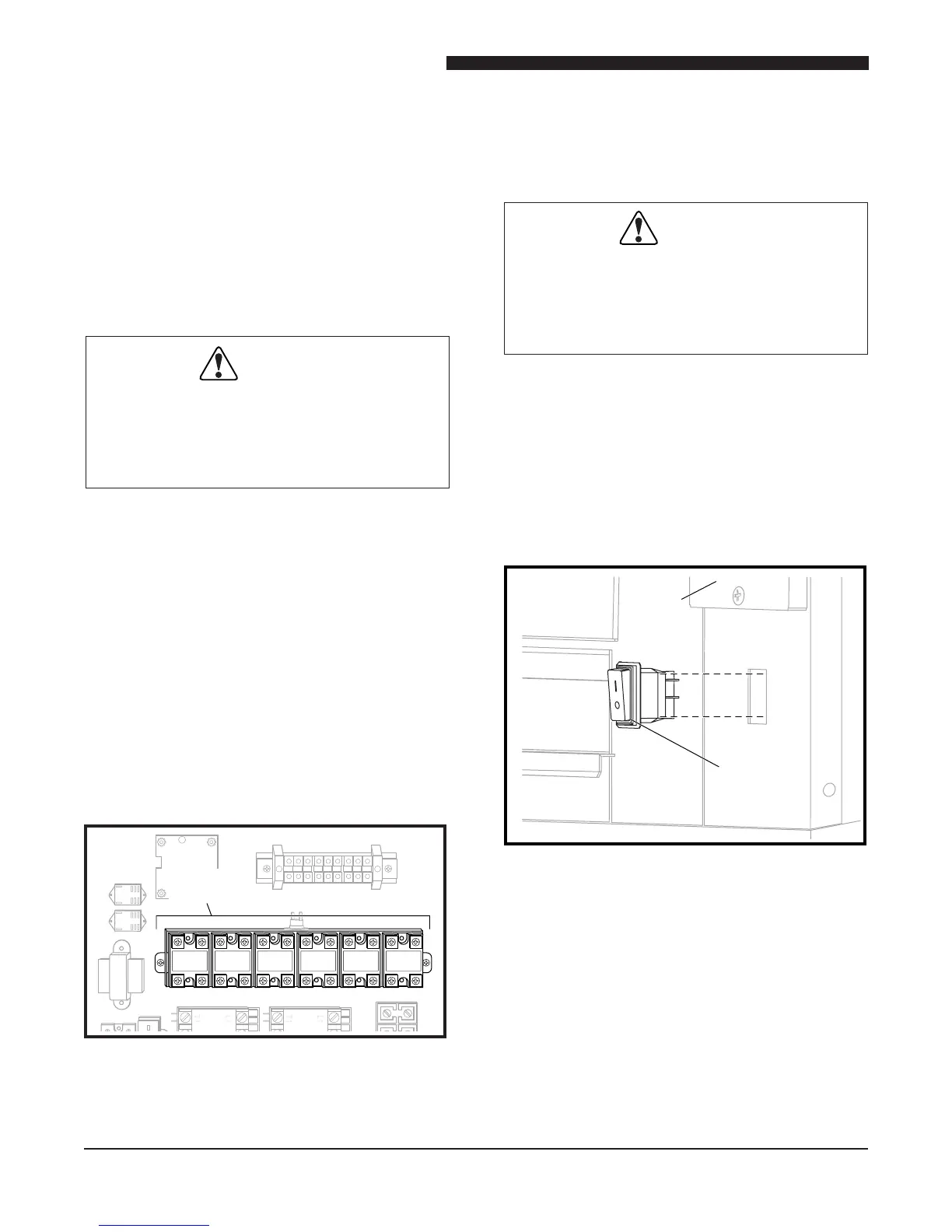

MAIN POWER SWITCH
The Main Power Switch is located on the front of
the broiler below the Control Board.
WARNING
DISCONNECT THE ELECTRICAL
POWER TO THE BROILER AND
FOLLOW LOCKOUT / TAGOUT
PROCEDURES.
1. Remove Electrical Access Panel. Refer to the
COVERS and PANELS section of the manual.
2. Disconnect switch wires.
3. Pinch the spring tabs on the top and bottom of
the switch and slide out through front of panel.
4. Reverse procedure to install a new Main Power
Switch.
Main
Power
Switch
Control
Board
Main Power Switch
SOLID-STATE RELAYS
The Solid-State Relays are accessible by removing
the Electrical Access Panel. There are a total of
Seven SSR’s. Six control the heating elements
and one controls the conveyor motor.
Please note that there are three types of Solid
State Relays used within the broiler. Each has
separate input and output operating voltages, as
well as different maximum output current ratings.
WARNING
DISCONNECT THE ELECTRICAL
POWER TO THE BROILER AND
FOLLOW LOCKOUT / TAGOUT
PROCEDURES.
1. Remove the Panel. Refer to the COVERS and
PANELS section of the manual.
2. Disconnect wires from the Solid-State Relay
to be removed.
3. Remove screws securing Solid-State Relay
to frame.
4. Remove Solid-State Relay.
5. Peel protective lm which covers the thermal
compound pad on the back of the new Solid
State Relay before replacing.
6. Reverse procedure to install a Solid-State
Relay.
Solid State
Relays
Solid State Relays
