Service Manual for Flexible Batch Broiler Units
CONVEYOR DRIVE MOTOR ASSEMBLY
The Conveyor Drive Motor Assembly is located
in the lower front of the broiler at the discharge
end. The motor drives the Conveyor by use of a
drive chain.
WARNING
DISCONNECT THE ELECTRICAL
POWER TO THE BROILER AND
FOLLOW LOCKOUT / TAGOUT
PROCEDURES.
1. Remove the Conveyor Drive Motor Cover.
Refer to the COVERS and PANELS section
of the manual.
2. Disconnect wires to motor.
3. Remove Discharge Access Panel. Refer to the
COVERS and PANELS section of the manual.
4. Remove four screws securing motor to
mounting plate and remove motor.
5. Raise motor mounting plate to disengage drive
chain from motor pulley.
6. Remove sprocket from motor shaft. Sprocket
is secured to motor shaft by two set screws.
COMPONENT REMOVAL
7. Reverse procedure to install a new motor.
Ensure that one of the sprocket set screws is
tightened to the at side of the motor shaft.
NOTE: When installing the new motor, be sure
to engage the chain on the motor sprocket.
Adjust the tension on the chain to allow 3/16"
chain deection, as described in the procedure
DRIVE CHAIN DEFLECTION ADJUSTMENT
in the ADJUSTMENT Section, before tightening
the motor mounting plate screws.

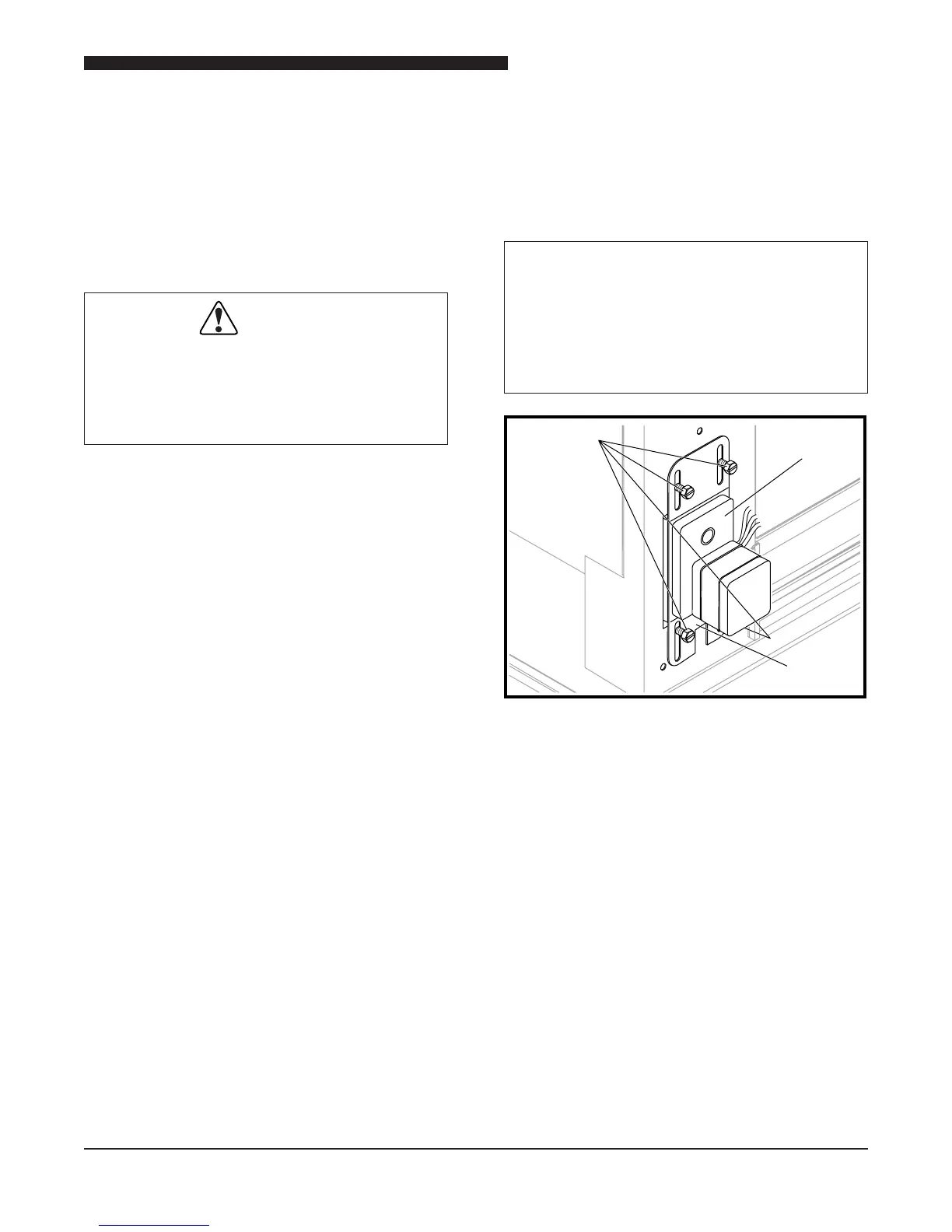

Motor
Assembly
Screws
Motor
Mounting
Plate
Conveyor Drive Motor Assembly
CONVEYOR DRIVE CHAIN
The Conveyor Drive Chain connects the drive
motor to the Conveyor.
