Service Manual for Flexible Batch Broiler Units
20
HEATING ELEMENTS
WARNING
DISCONNECT THE ELECTRICAL
POWER TO THE BROILER AND
FOLLOW LOCKOUT / TAGOUT
PROCEDURES.

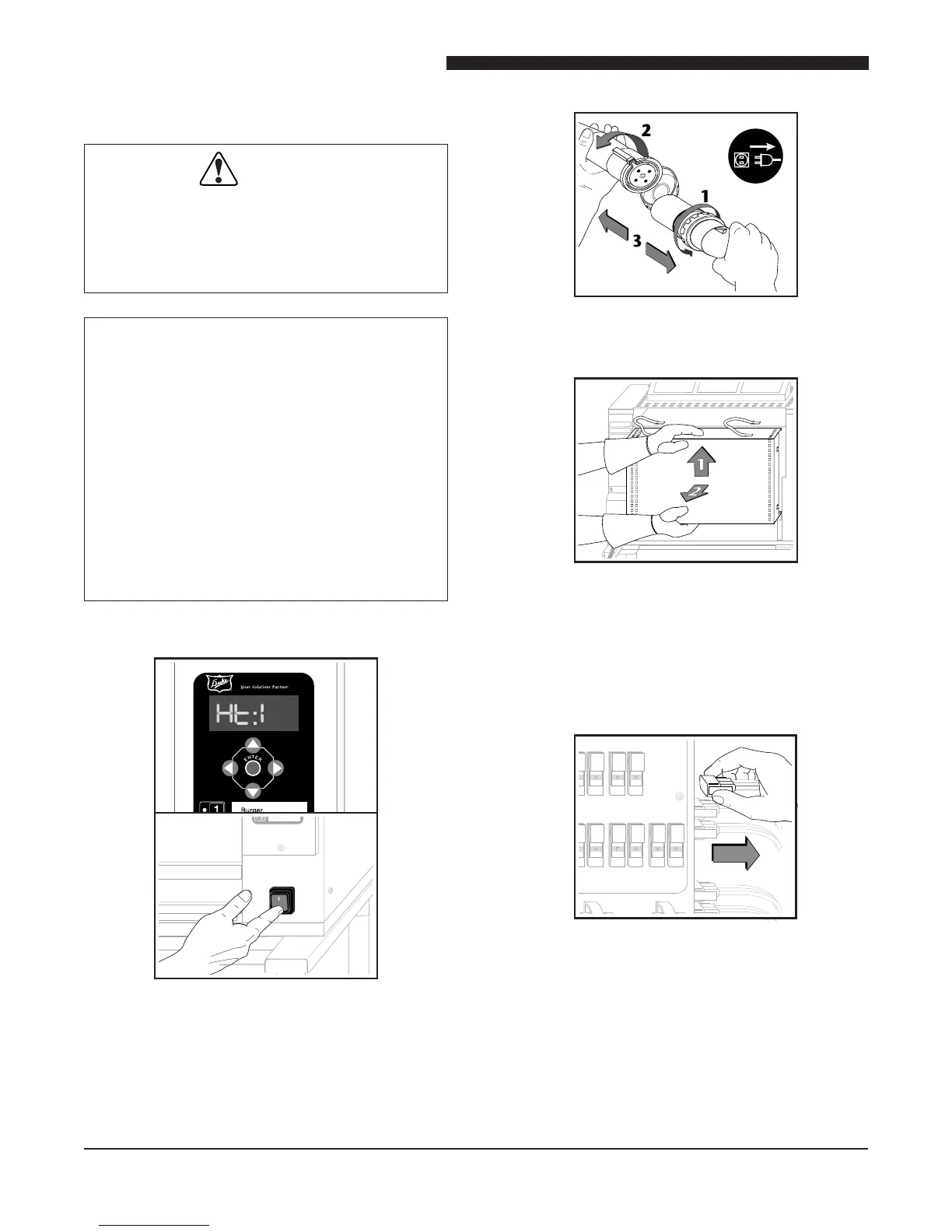

NOTE: In the event of an element failure, the
Controller will display an error message and
indicate which element has failed. Refer to
the Troubleshooting Label on the right side of
the Broiler to identify the appropriate element
location. The controller will display:
• Ht:1
• Ht:2
• Ht:3
• Ht:4
• Ht:5
• Ht:6
1. Turn off power and unplug the Broiler.
2. Lift and remove rear access panel.
3. Remove the element cover panel. Refer to the
COVERS and PANELS section of the manual.
4. Remove the Fuse Access Panel and the
Element Connection Access Panels. Refer
to the COVERS and PANELS section of the
manual.
5. Disconnect the appropriate element plug
from the interior panel by squeezing in the
connector’s tabs.
To Next Page
