Duke FBB-EO-208 - Ash Scraper Bracket Adjustment; Loader Door Seal Bracket

Service Manual for Flexible Batch Broiler Units
24
ASH SCRAPER BRACKET ADJUSTMENT
The Ash Scraper Bracket support the Ash Scraper
on the Discharge end of the Broiler.
1. Remove Discharge Access Panel. Refer to the
COVERS and PANELS section of the manual.
2. Loosen three nuts which secure the Ash
Scraper Bracket and adjust bracket up or down
as needed.
Ash Scraper
Bracket
Loosen nuts

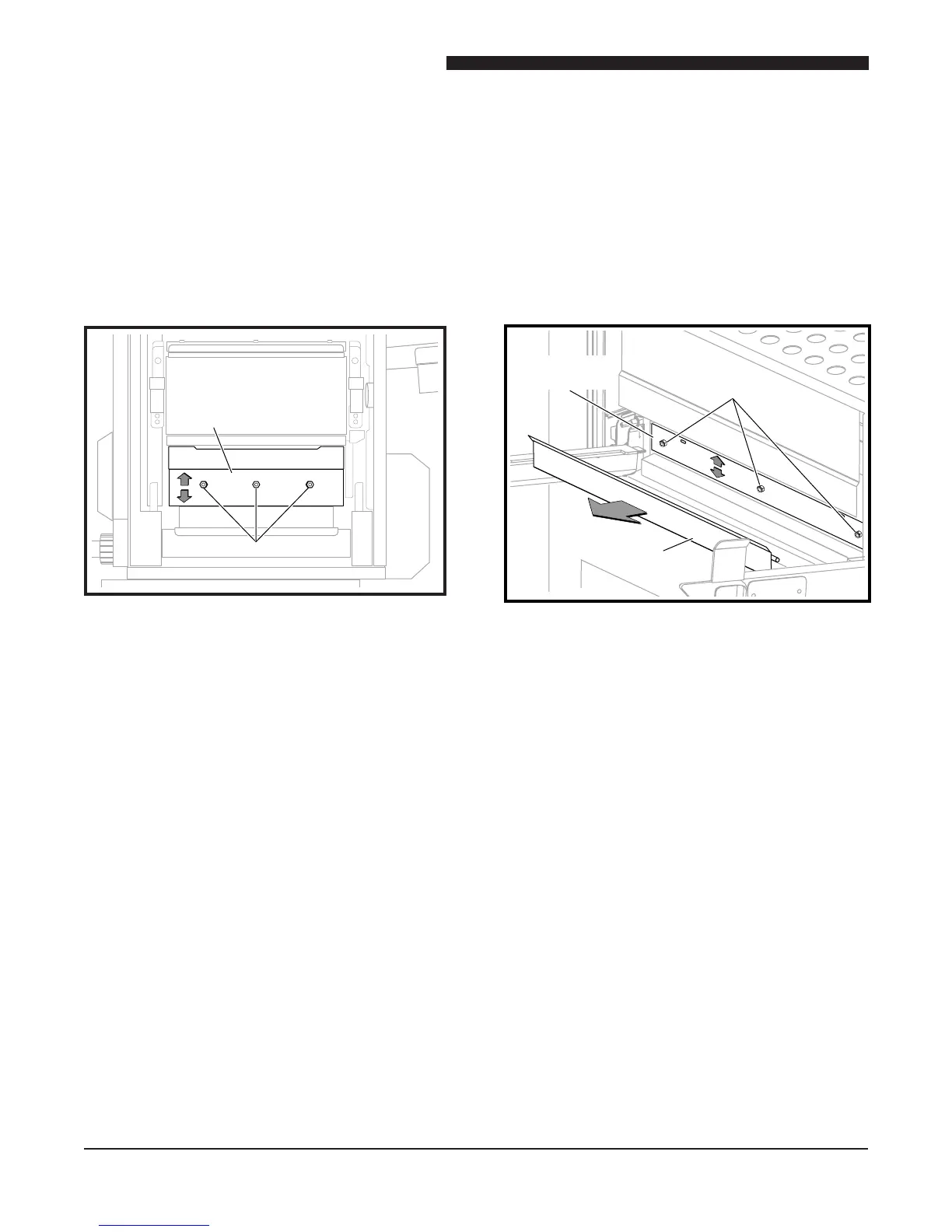

Ash Scraper Bracket Adjustment
LOADER DOOR SEAL BRACKET
The Loader Door Seal Bracket supports the Loader
Door and assists to seal any gap between the
Loader Door and the Loader Ramp.
1. Remove the Loader Door.
2. Loosen three nuts which secure the Loader
Seal Door Bracket and adjust bracket up or
down as needed.
Loader
Door
Loader Door
Seal Bracket
Loosen nuts
Loader Door Seal Bracket
