Service Manual for Flexible Batch Broiler Units
REMOVAL AND REPLACEMENT OF COMPONENTS
COVERS AND PANELS
WARNING
DISCONNECT THE ELECTRICAL
POWER TO THE BROILER AND
FOLLOW LOCKOUT / TAGOUT
PROCEDURES.
Caution: If the broiler has been operating,
broiler panels and components
may be hot. Use PROPER
PROTECTION.

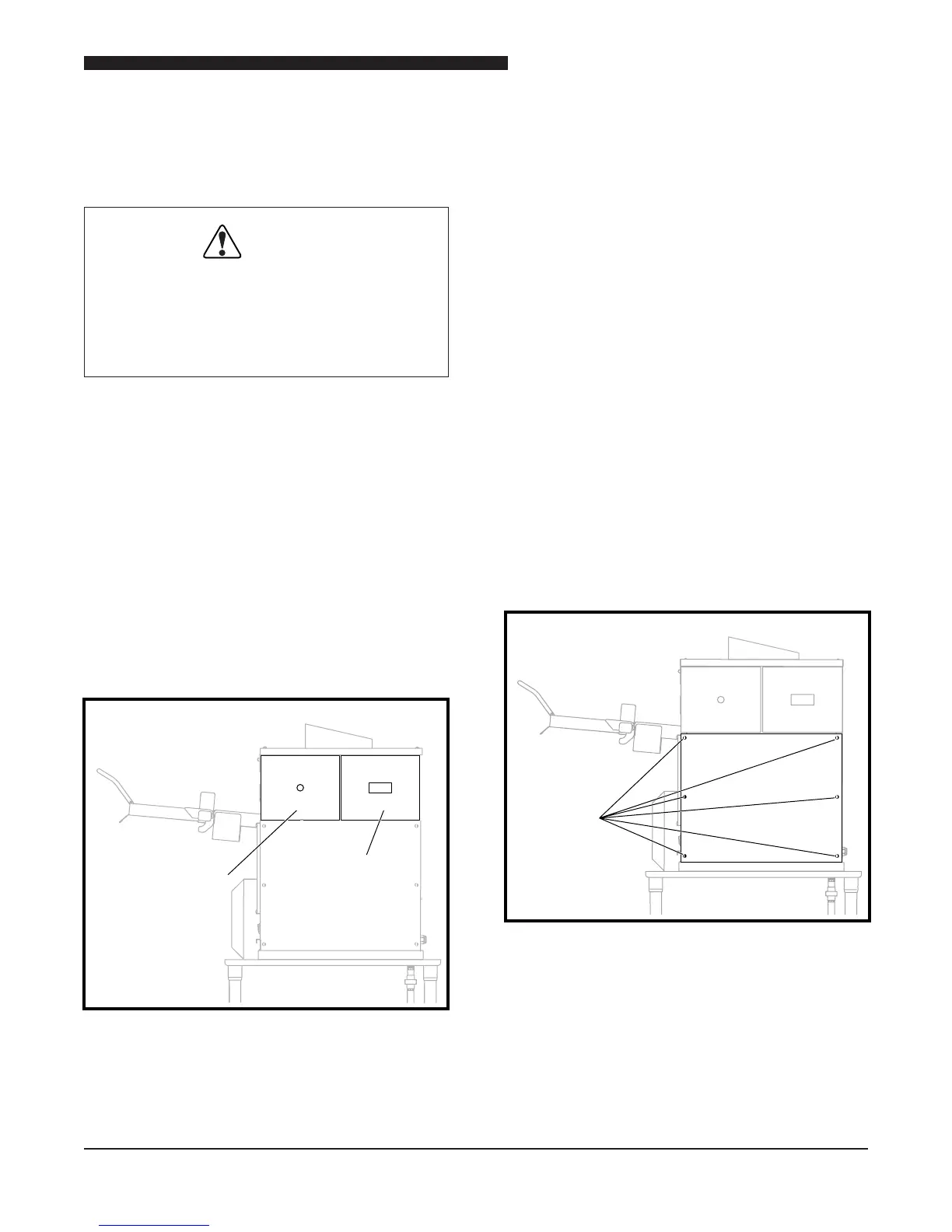

Fuse Access Panel
The Fuse Access Panel provides access to the
Upper Flame Sensors, Igniters and Blower Hose.
1. Remove Fuse Access Panel by lifting up and
removing from broiler.
2. Install Fuse Access Panel by lowering into the
side grooves.
Fuse
Access
Panel
Element
Connection
Access
Panel
Upper Access Panels
Element Connection Access Panel
The Element Connection Access Panel provides
access to the electrical connection for the Heating
Elements.
1. First remove Fuse Access Panel. Refer to the
COVERS and PANELS section of the manual.
2. Remove Element Connection Access Panel
by lifting up and removing from broiler
3. Install Electrical Connection Access Panel by
lowering into the side grooves.
Electrical Access Panel
The Electrical Access Panel provides access to
the Transformers, Blower Motor, Conveyor Motor
Capacitor, and electrical connections to the Control
Board.
1. Remove the six screws securing the Electrical
Access Panel.
2. Remove the panel from the broiler.
3. Reverse procedure to install the Electrical
Access Panel.
Screws
Electrical Access Panel
Product Pan Shelf
The Product Pan Shelf is located on the discharge
side of the broiler and holds the unused holding
pans.
1. Lift the pan shelf up and remove.
