Service Manual for Flexible Batch Broiler Units

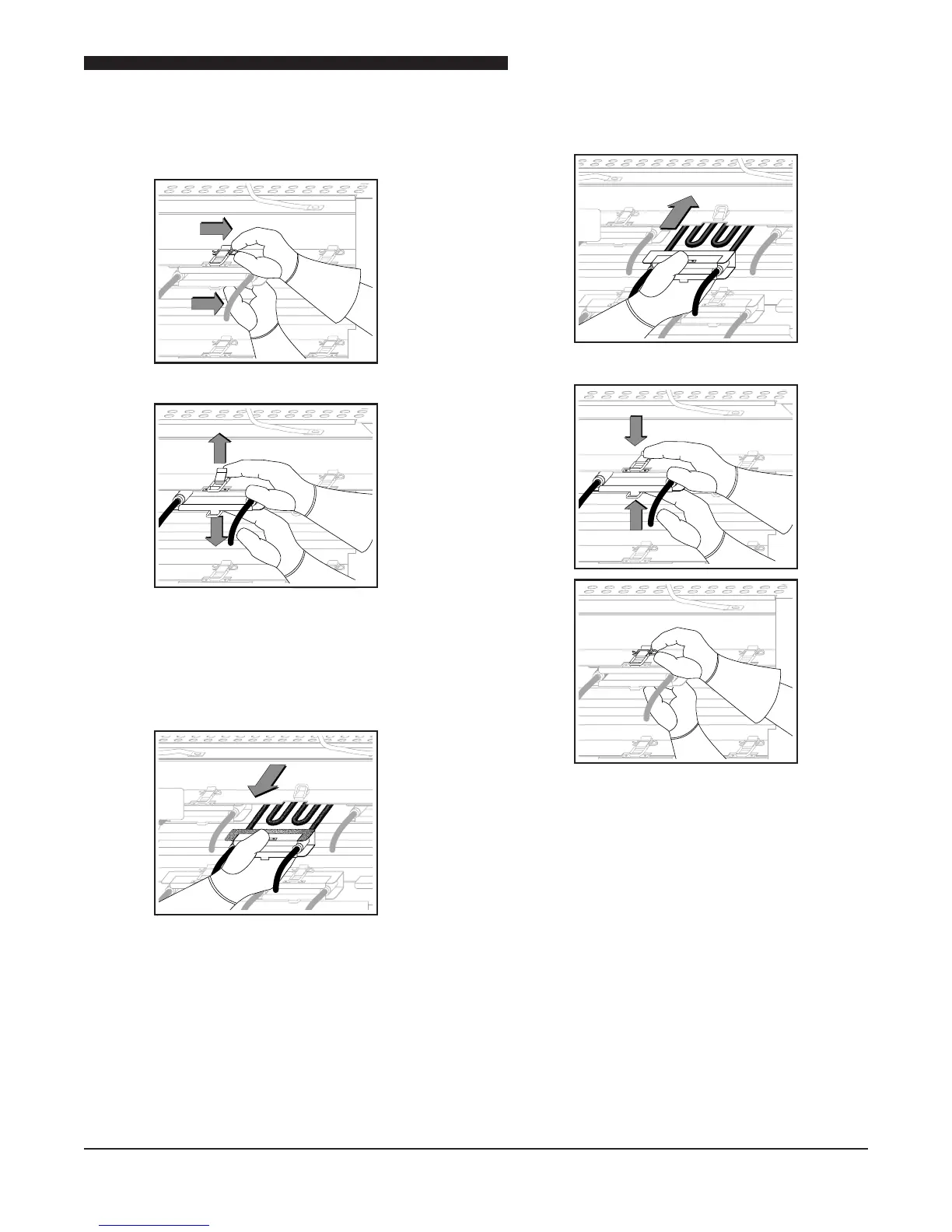

6. Disengage the clip by rst removing the
retaining pin on both top and bottom of
element module.
7. Pull clip forward to disengage.
8. Slowly remove element module and replace
with identical conguration. Replacement
element must also be slid into support bracket
at the front of the Broiler (Clips and Hooks will
not align properly if the wrong element module
is re-inserted.)
9. Slide element module in place and reengage
clips and re-insert retaining pins.
10. Reengage clips and re-insert retaining pins.
11. Reconnect element connector to interior panel
connector.
12. Reinstall the Element Cover Panel.
13. Reinstall the Rear Panel and fasten the
retaining latch.
14. Reinstall the Element Access Panel.
15. Plug in the Broiler.
16. Turn on the Main Power Switch.
